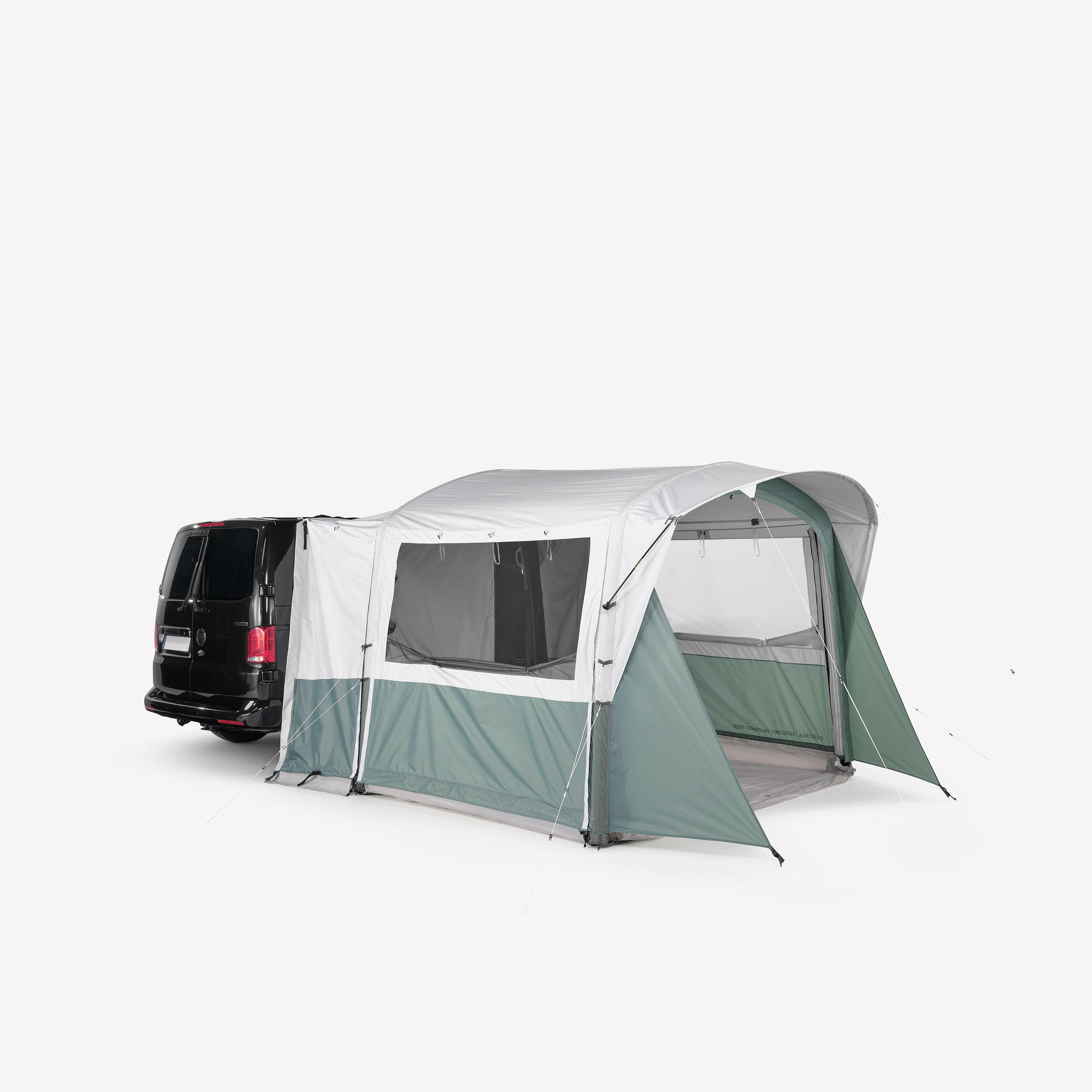

Van and truck inflatable canopy - Van Connect Air Seconds Fresh - 6 people
Store Availability
Store availability
BENEFITS
Compatibility
Can connect to vans that are between 1.80 m and 2 m high
Easy assembly / dismantling
Very quick assembly thanks to the inflatable structure | Pump not included
Easy transport

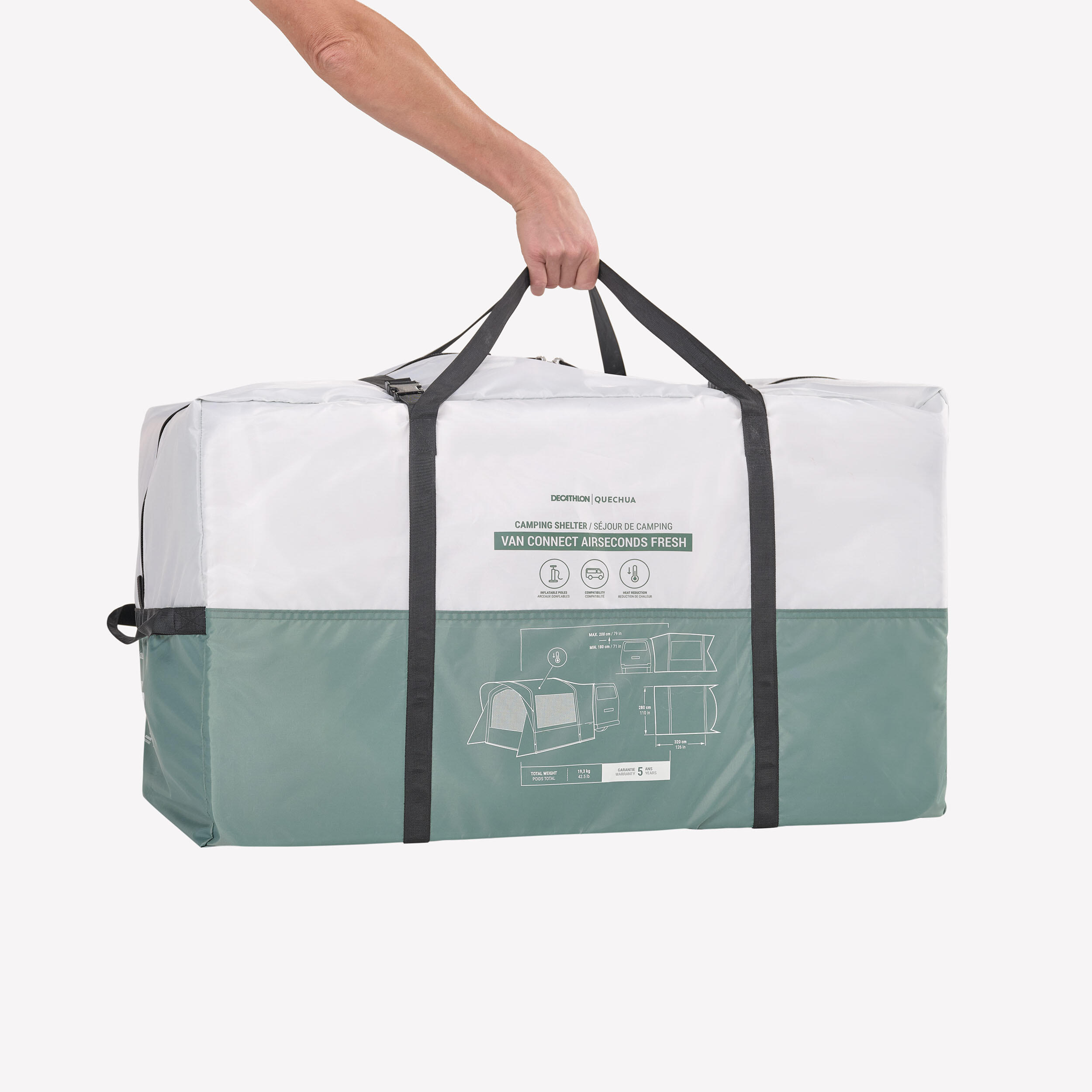

Rectangular carry case | 74 x 45 x 45 cm | 150 L | 19.8 kg Removable groundsheet
Capacity
Max height: 230 cm | Floor area: 9 m² | Sleeps 6 people comfortably
Waterproof
Water column (Schmerber): Flysheet > 2,000 mm rating Groundsheet > 2,400 mm
Heat reduction
3 Large openings | 2 side doors | Fresh fabric | 2 tarp poles included
Sleeping quality
Option to add a 140 x 210 cm double bedroom (ref: 8853468)
Wind resistance
Withstands force 7 winds - around 60 km/h | Wind tunnel test
TECHNICAL INFORMATIONS
What accessories (not included) can be added to the VAN CONNECT AIRSECONDS awning?
The following accessories are available for this van awning:
- Inflate with a Quechua Ultim pump (not included - ref: 8601387) ;
- Additional 2-person bedroom: 140 x 210 cm (ref: 8853468) ;
- Awning rail connection kit: double-beaded connection set (ref: 8853467)

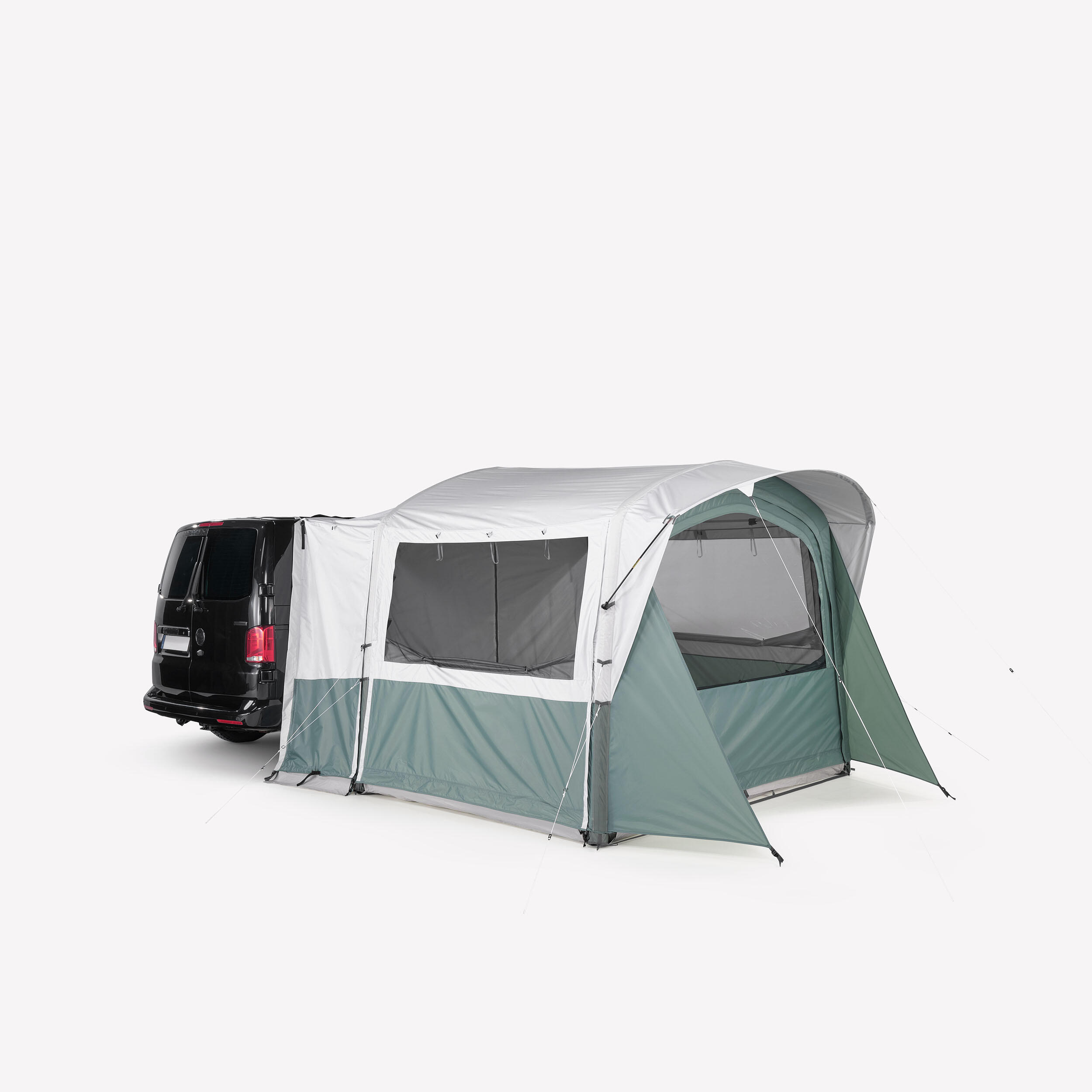

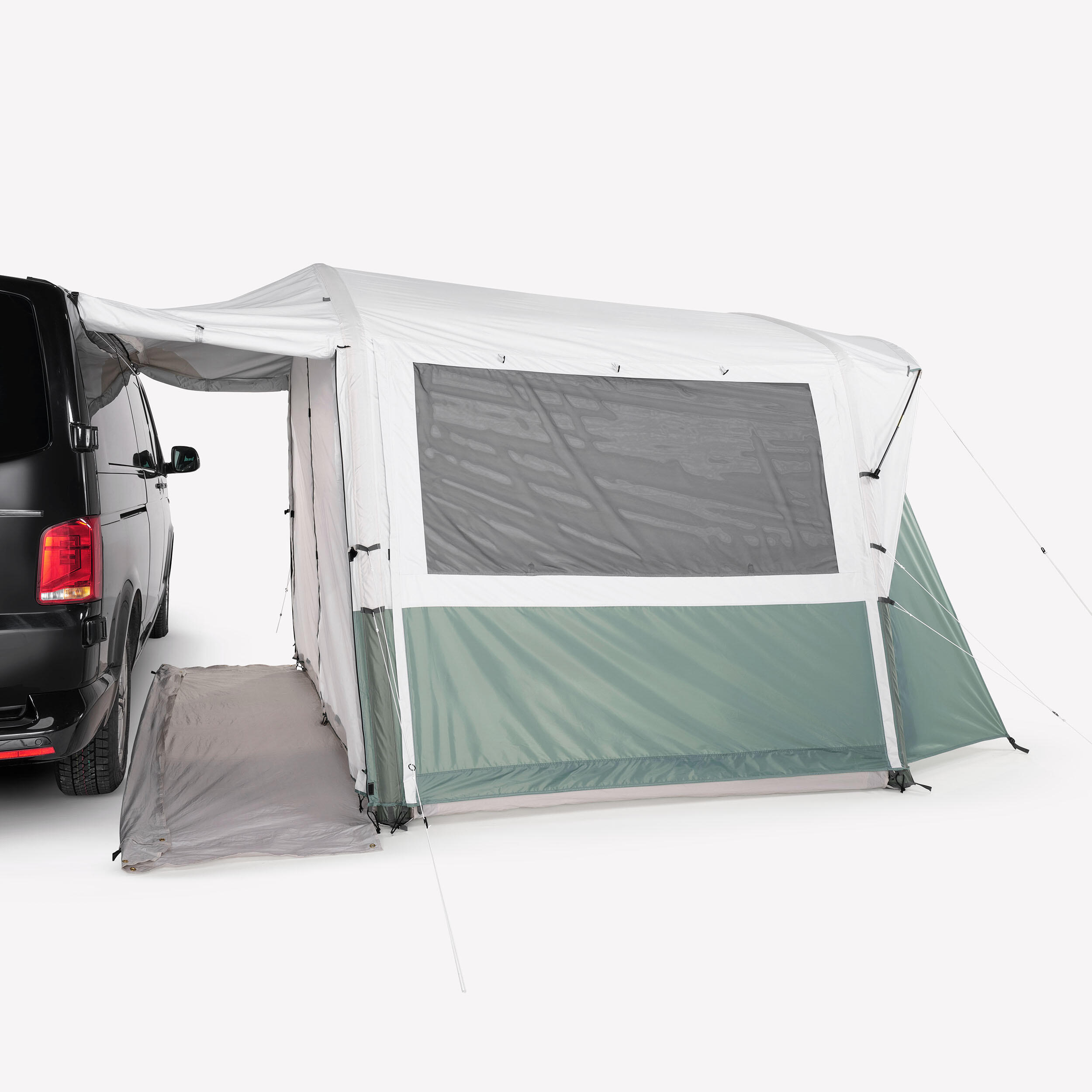

How does the VAN CONNECT AIRSECONDS FRESH awning connect to the van?
The connection system of this van awning is made up of:
- an aluminium bar to be placed in a sleeve to place and then on the roof of your vehicle;
- two 4 m (maximum) connection straps to make it taut. They pass over your vehicle and attach to the bottom of the bodywork or to the rims of your van. They can also be pegged down;
- If your vehicle has a rail, you can add a connection kit (not included, ref: 8853467).

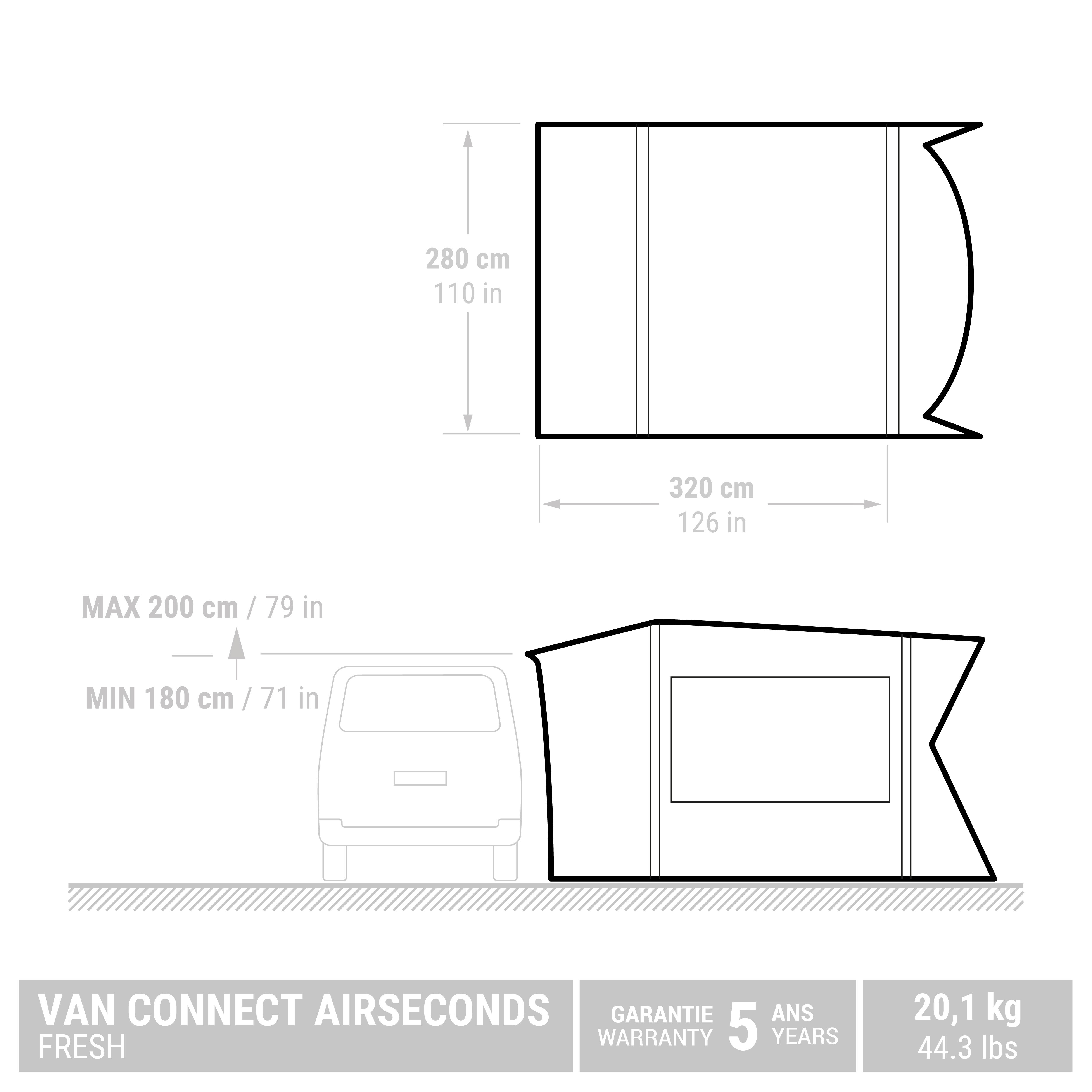

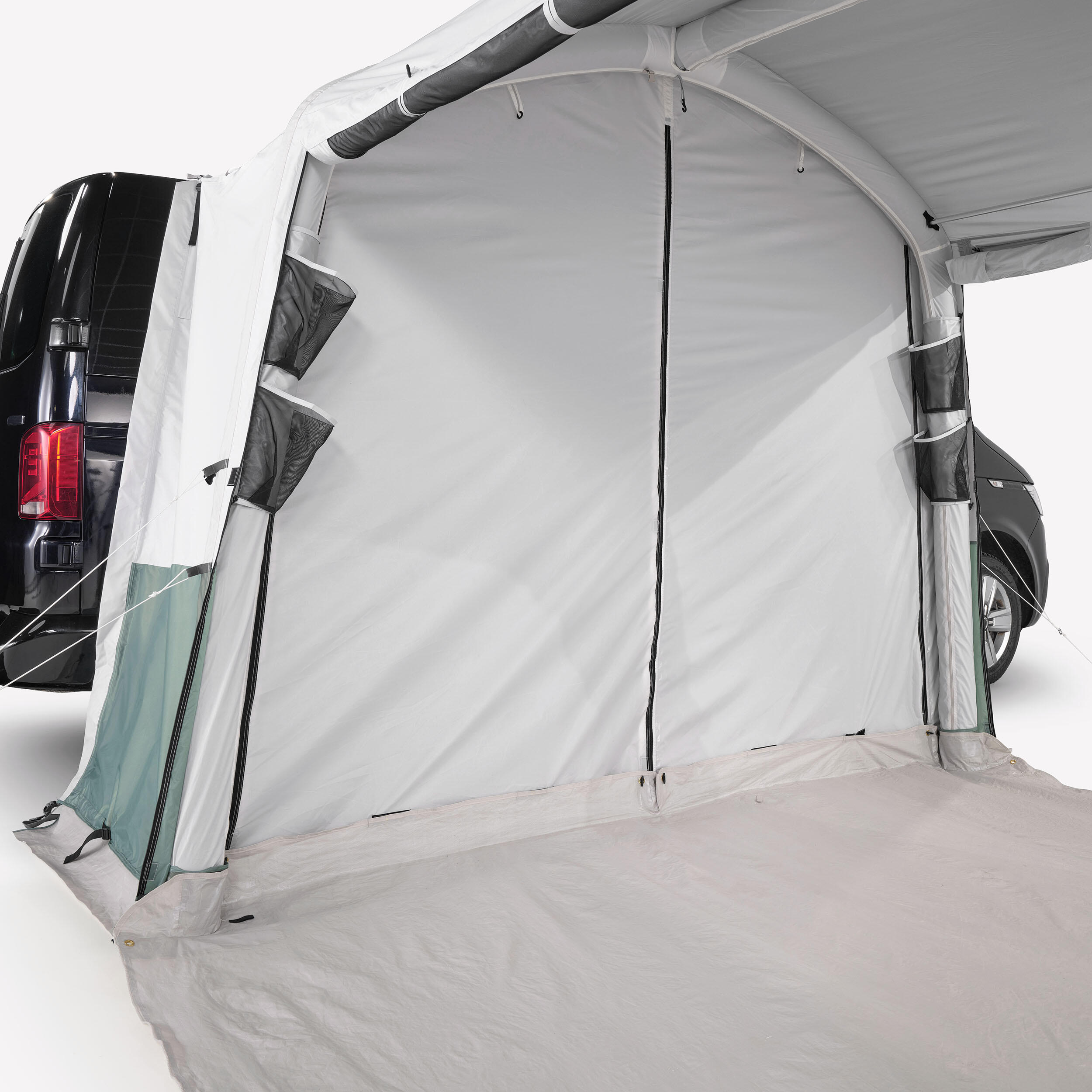

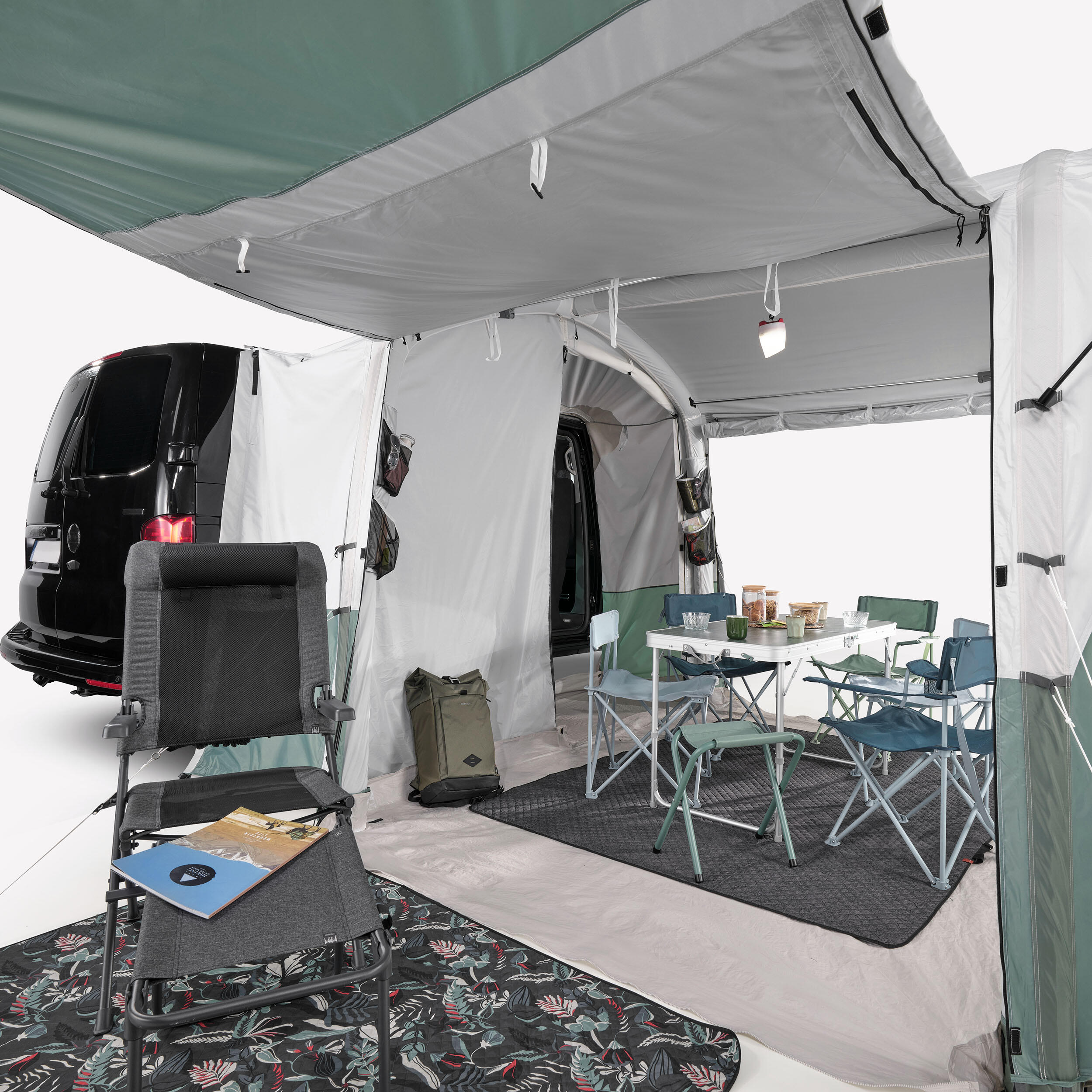

What is the living area of the VAN CONNECT AIRSECONDS FRESH awning like?
The living area of this van awning is square shaped and has a surface area of 6.5 m².
The van-side connection measures 2.5 m².
The maximum height of the module is 2.35 m.
The height of the door is 1.80 m (centre of door). The height of the side doors is 1.85 m

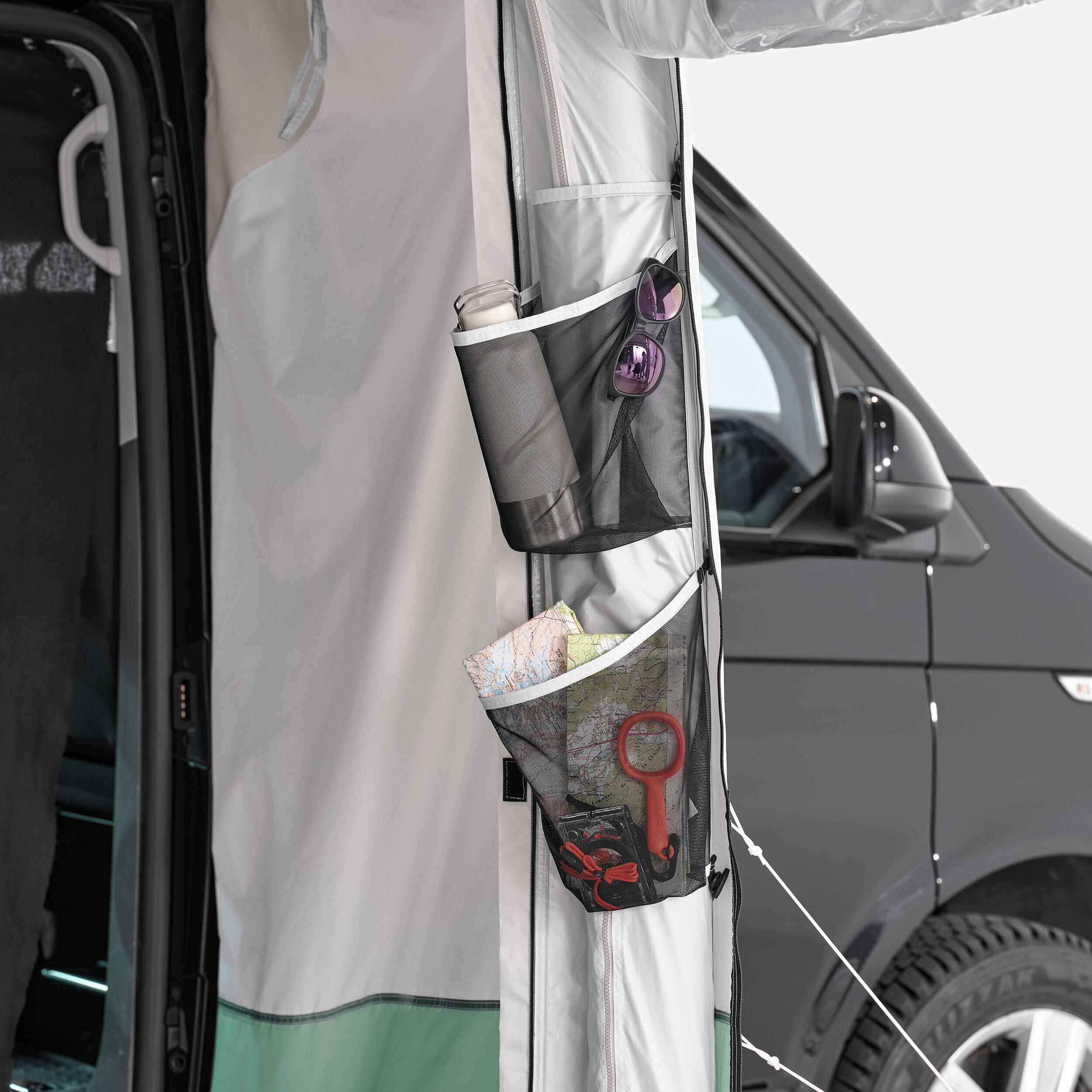

4 pockets

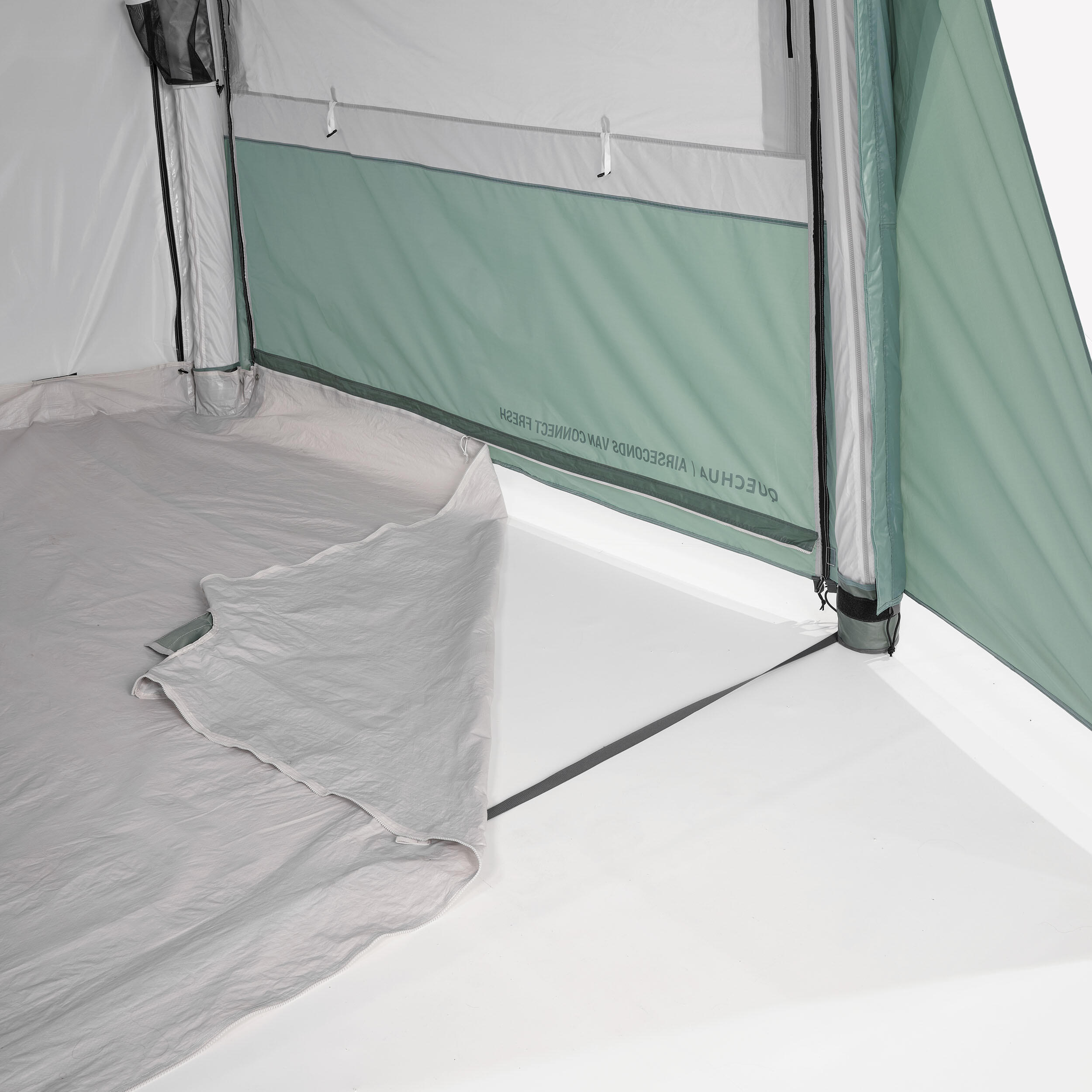

The groundsheet is removable.
It is possible to disconnect the living area and leave it on site for the day!
How to put up and take down the VAN CONNECT AIRSECONDS FRESH awning

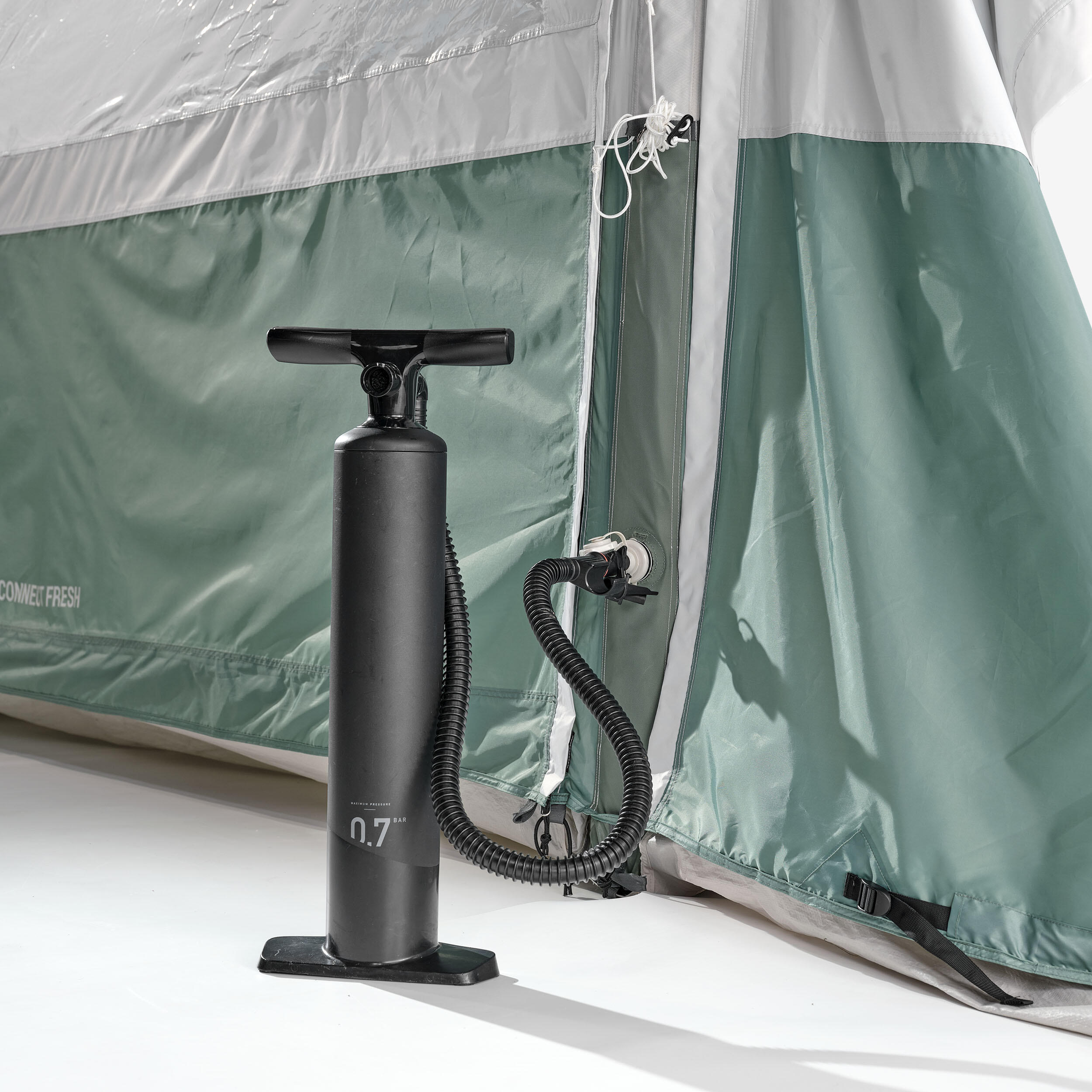

Inflatable structure with two inflation points making it easier to inflate.
we recommend inflating the poles to 7 PSI of pressure.

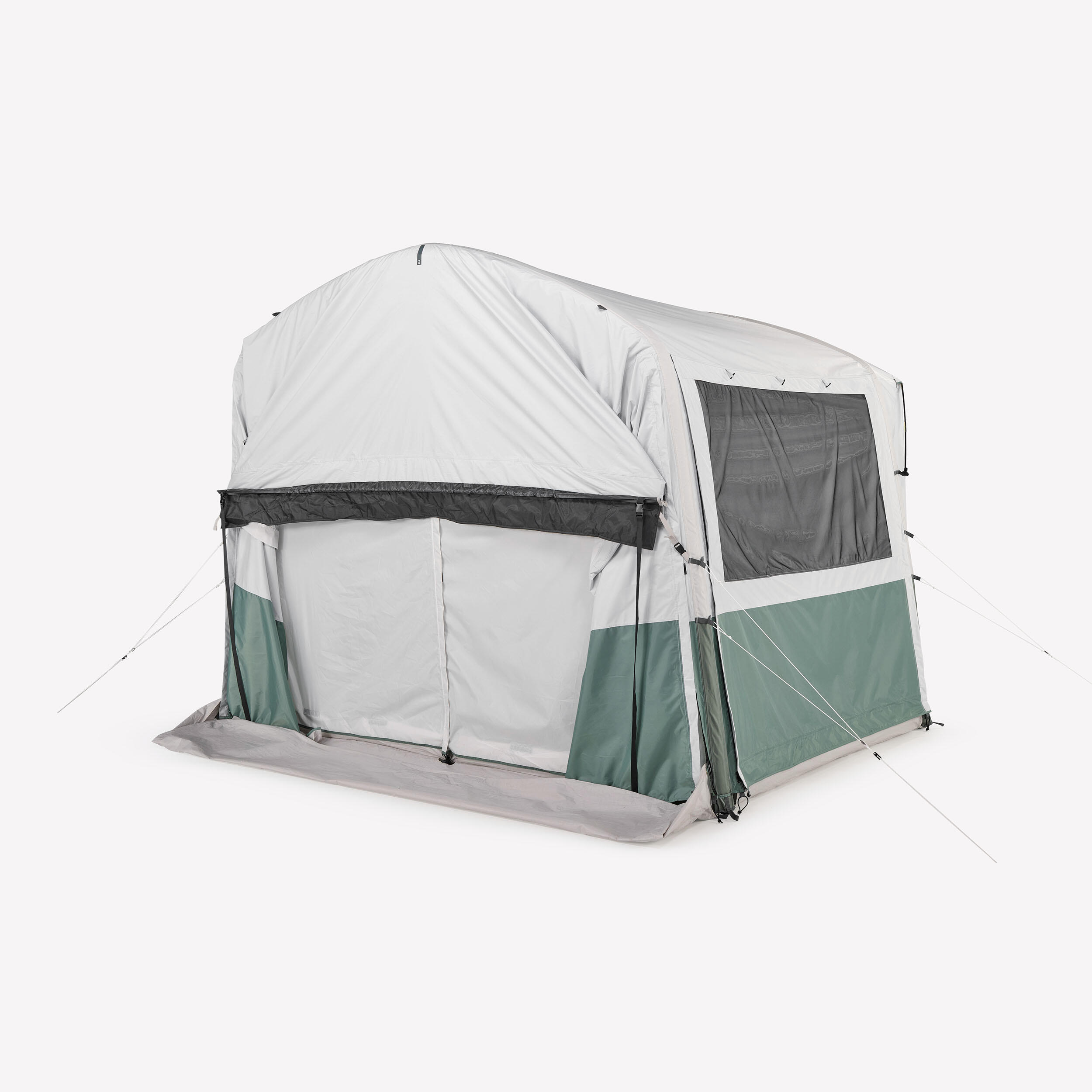

Once inflated the structure is free-standing, i.e. you can move it to a different location easily. Thanks to the connection system you can connect it to your van, as long as it is between 1.80 and 2 m high.

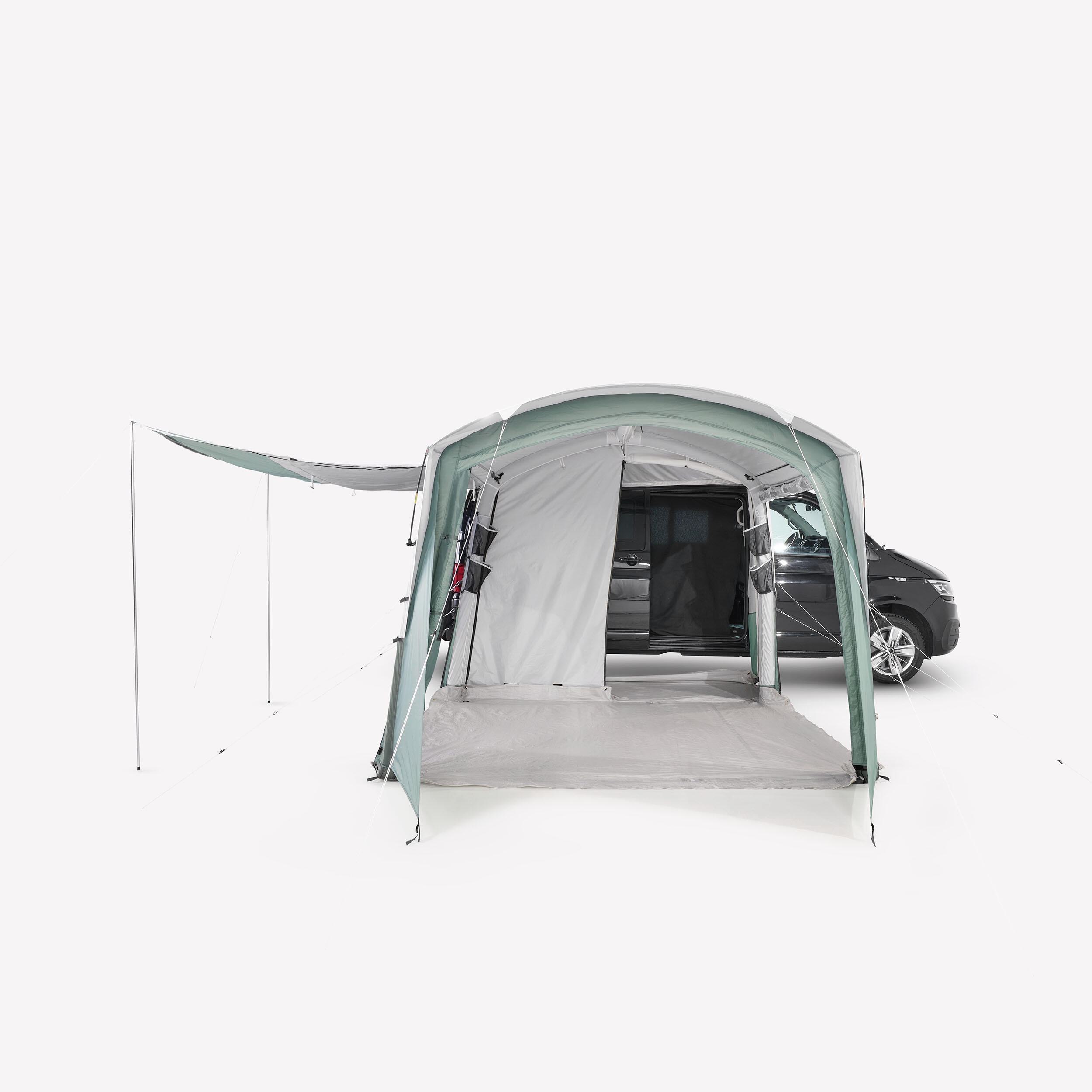

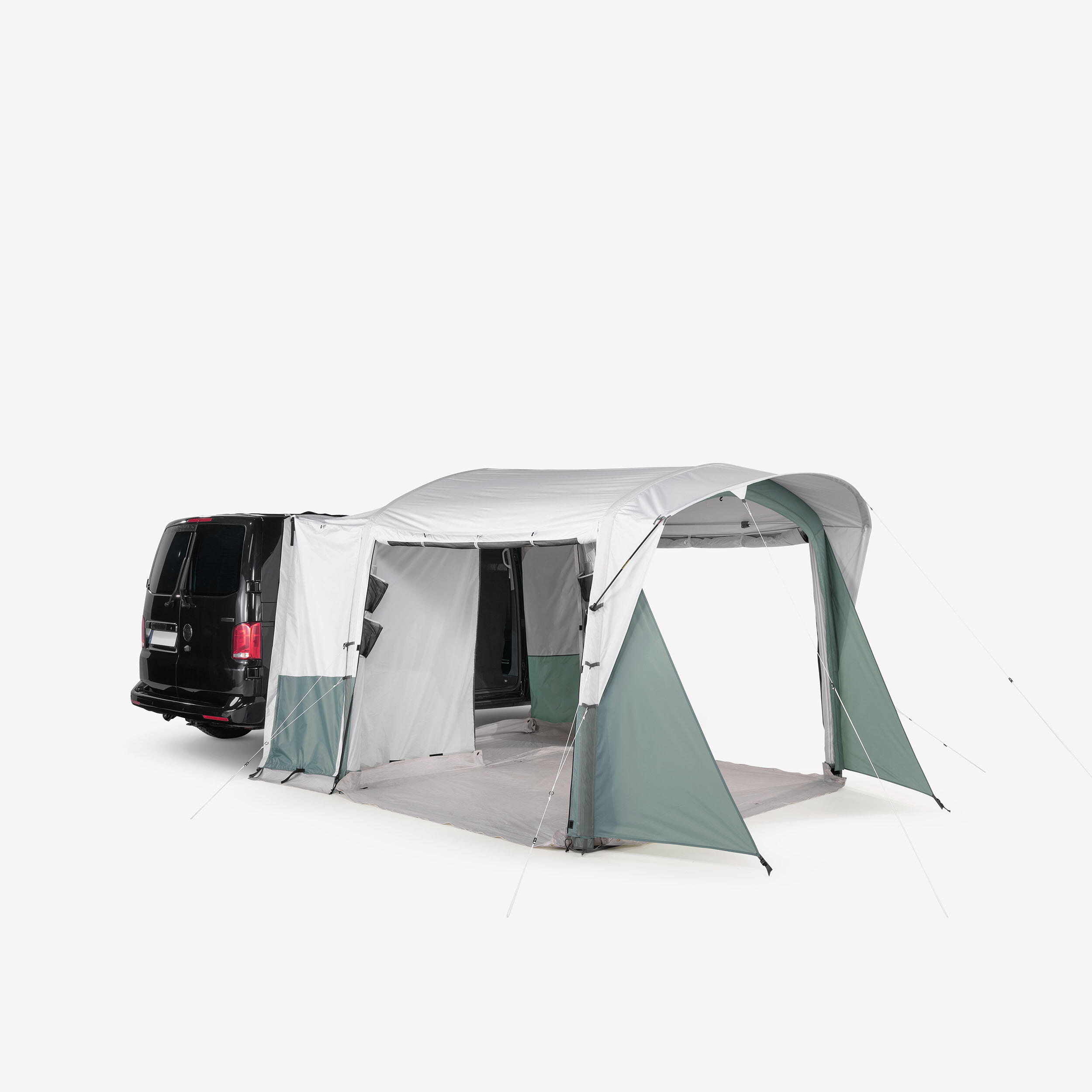

Two poles are provided so you can raise the doors to canopy mode.
We recommend that two people pitch the tent to make it easier.
Does the VAN CONNECT AIRSECONDS FRESH awning provide protection from the sun?
The Ti0² -coated fabric is SPF 50+.
Caution: A large amount of UV rays can pass through an open door. Protect your skin with sunscreen.
How does the ventilation work under the VAN CONNECT AIRSECONDS FRESH awning?

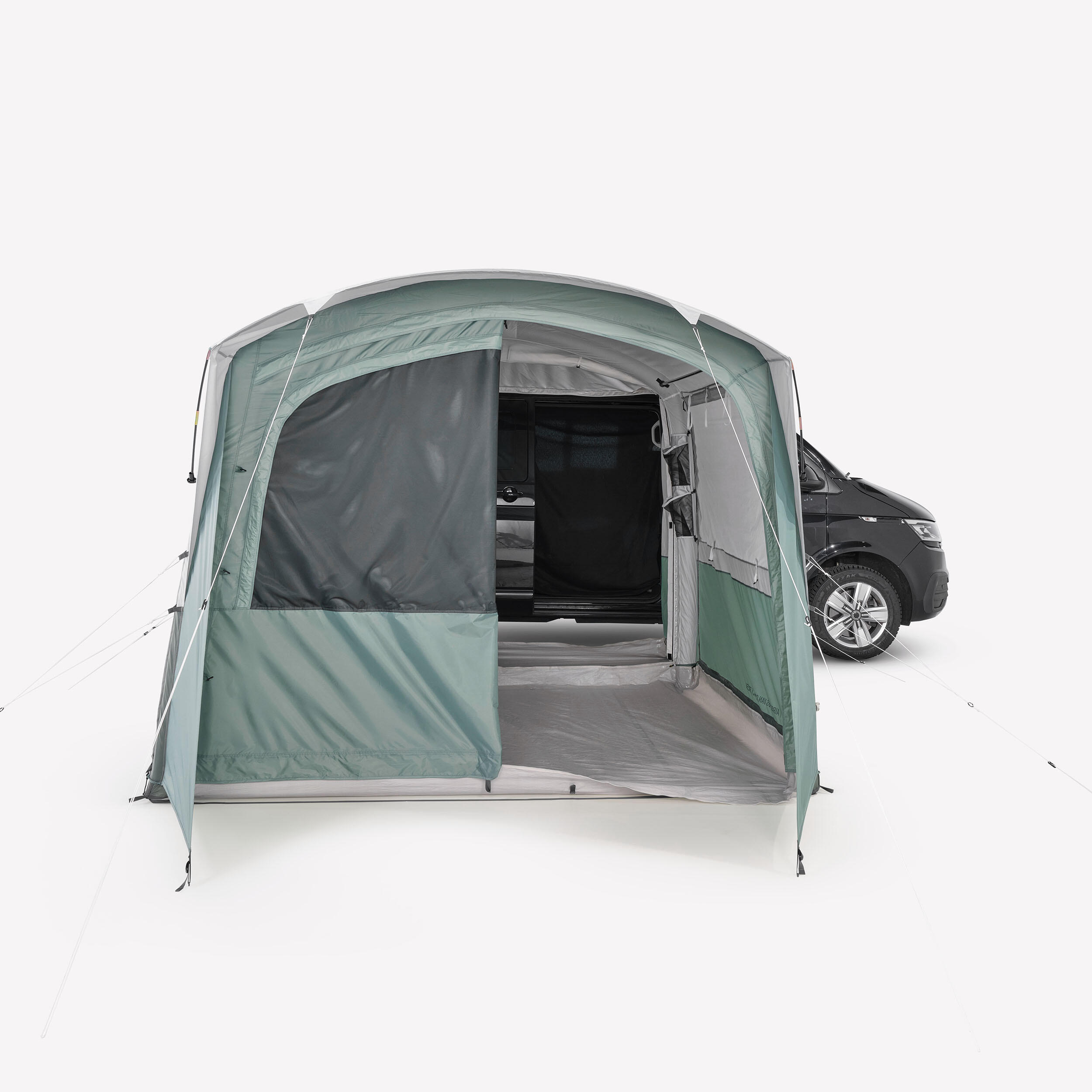

Central door and side door with mosquito net.
How wind resistant is the VAN CONNECT AIRSECONDS FRESH awning?
We test all our living rooms in a wind tunnel on a turntable to expose each side of the living room to the wind. A properly pitched living room with all guy ropes fitted should remain habitable in wind speeds up to 60 km/h near the ground.
How water resistant is the VAN CONNECT AIRSECONDS FRESH awning?
We test our living rooms to validate their waterproofing. The first test is done in the laboratory, 3 hours under 200 litres of water per hour per sqm, equivalent to 200 mm tropical rain per hour. The second test is done in the field under real-life conditions by our teams. This living area is fitted with a polyurethane-coated polyester flysheet measuring 2,000 mm. It also has seams that have been waterproofed with heat-sealed strips, and a 140 g/sqm polyethylene groundsheet.
Is the VAN CONNECT AIRSECONDS FRESH awning repairable?
Our van awnings will accompany you on your camping trips.
Over time, some parts may wear out or break.
To help with repairs, we make the most common parts accessible to you to make them easy to replace.
Find all the information in the after-sales card.
Don't throw away, repair !
How to properly maintain the VAN CONNECT AIRSECONDS FRESH awning
Our camping living rooms have been designed for occasional outdoor use (4 weeks per year) when camping or in the great outdoors. Continued exposure to UV rays over several weeks can damage the fabric. These products are not classified as “garden furniture” and aren’t designed to be left outdoors permanently. To guarantee maximum durability of your living room, it's important to store it when not in use.
COMPOSITION
composition
Floor mat: 100.0% Polyethylene; Main fabric: 100.0% Polyester; Metallic structure: 50.0% Thermoplastic Polyurethane, 50.0% Aluminium; Carry bag: 100.0% Polyester; Main fabric - Coating: 100.0% Polyurethane
Tips for storage and maintenance
DO NOT WASH.
BLEACHING EXCLUDED.
DO NOT TUMBLE DRY.
DO NOT IRON.
DO NOT DRY CLEAN.
Storage tips
We advise that you air-dry your living room outside, including the underside. You can then store it without any risk of odours or mould developing.
Restrictions on use
Compatible with vans that are between van 1.80 m and 2 m high.
TESTS AND WARRANTY
Test product
To meet your requirements, Quechua products are tested out in the heart of the type of conditions you may encounter during your hikes. Our teams, as well as a panel of testers (made up of partners, ambassadors and customers), test the products throughout their development right up until they are marketed.
Warranty
2 Years
