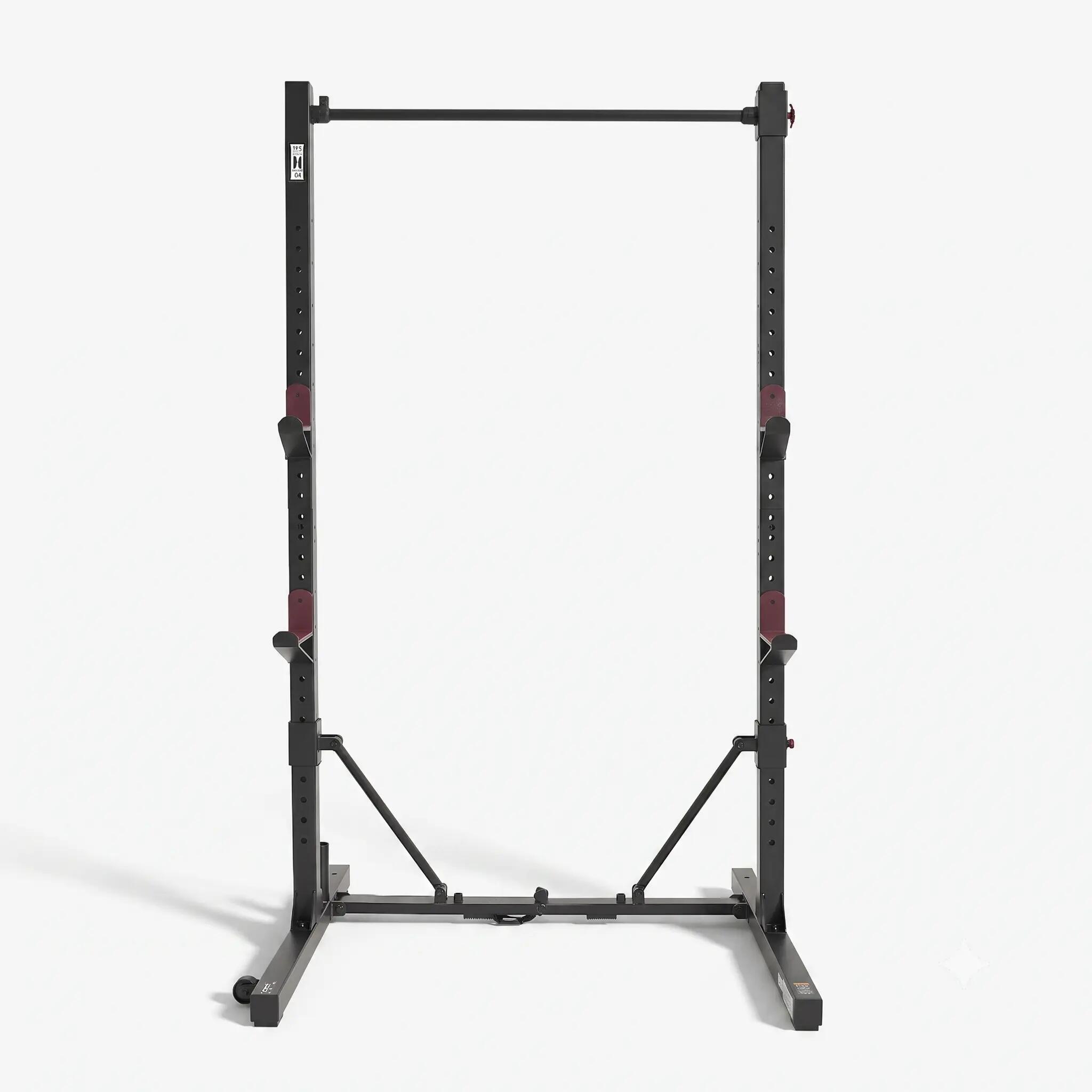

Fold-Down/Retractable Squat, Bench & Pull-Up Weight Training Rack 500
Store Availability
Set up a complete home gym with this fold-down rack. It features an ultra-compact design for easy storage when you're done with your workout.
Push your limits with this sturdy weight training rack (max load: 200kg, 130kg for the pull-up bar) with non-slip feet for stability.Use the Freeletics app to vary your sessions!
BENEFITS
Compact design
A rack that folds in less than a minute.The product goes from 128 cm to 47 cm.
Modularity
Several accessories are available for this rack (dip kit, pulley, etc.)
Robustness
Maximum load: 200 kg Chin-up bar: 130 kg
Coaching
Let the Freeletics app coach you to meet your goals.
Easy to move
Tilt the rack and easily move it into storage.
Stability
Incredibly stable thanks to its 128 cm length
TECHNICAL INFORMATIONS
You won't find two like this on the market!
Our mission: to help you get the most out of your training space!
And what about the Rack 500?

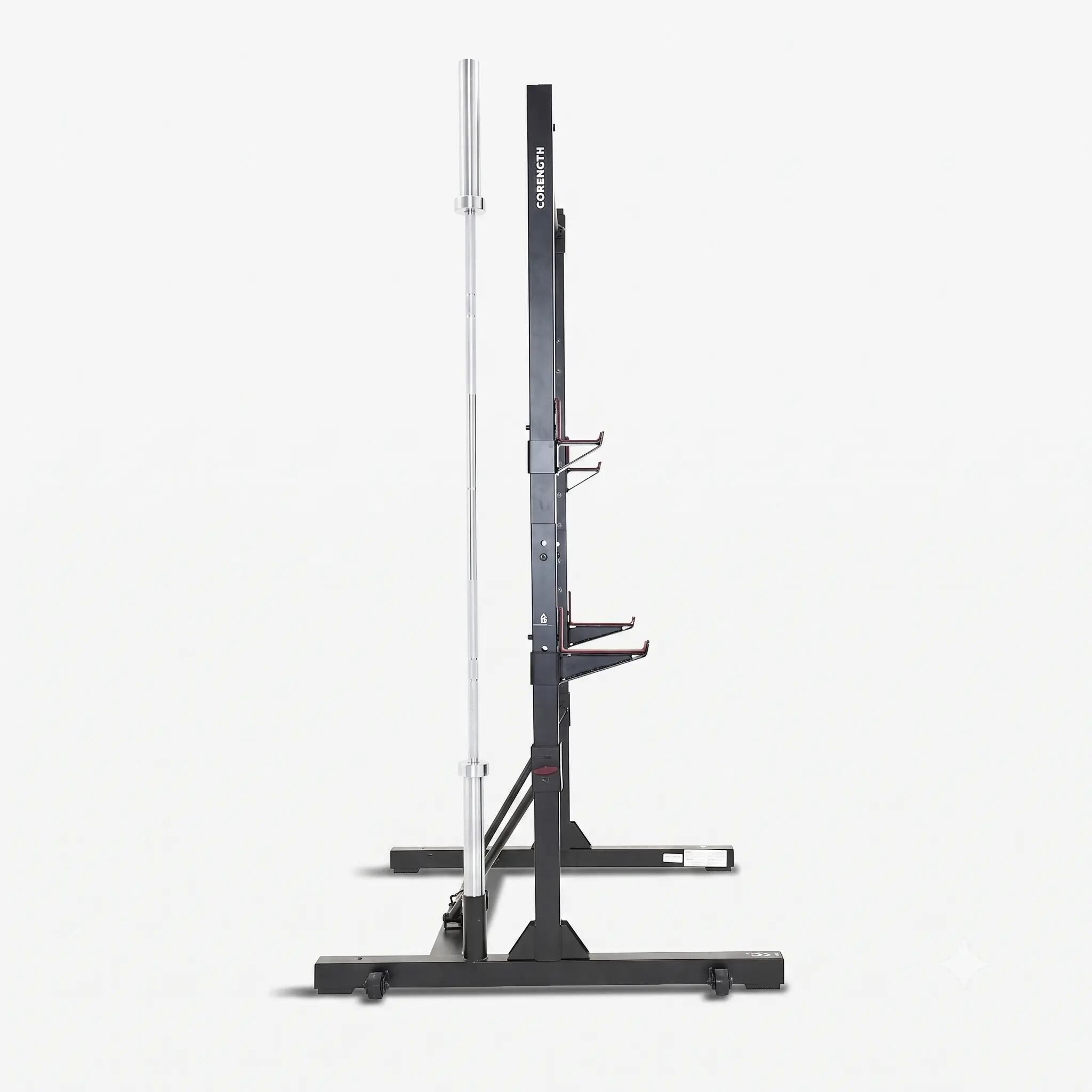

- It folds and unfolds quickly from 128 cm to 47 cm:ideal for small spaces.
- Integrated castors for effortless movement.

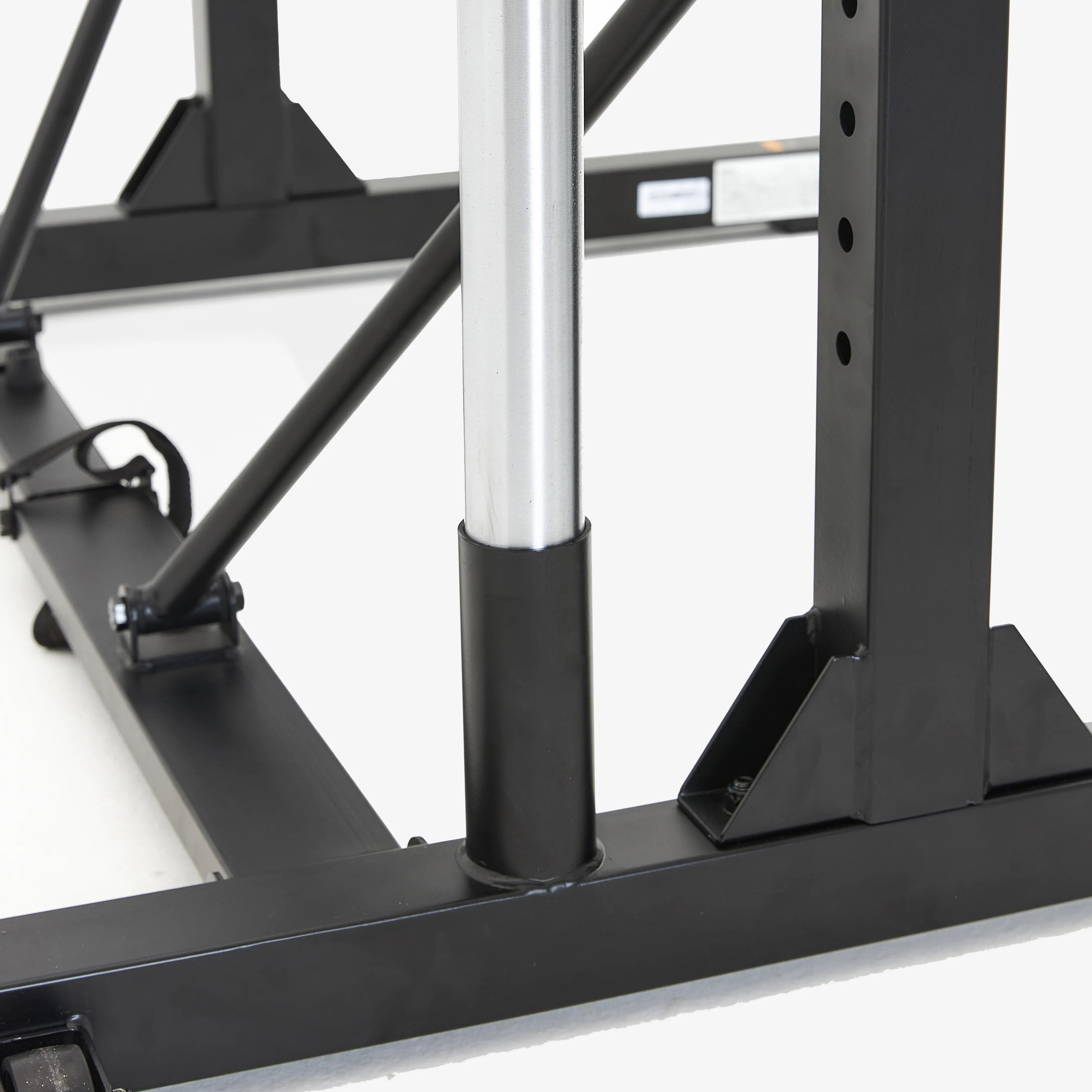

- Adjustable bar holder for 28 mm or 50 mm bars, thanks to its sleeve.
- Compatible with landmine, dips kit and pulley, increasing your training options.

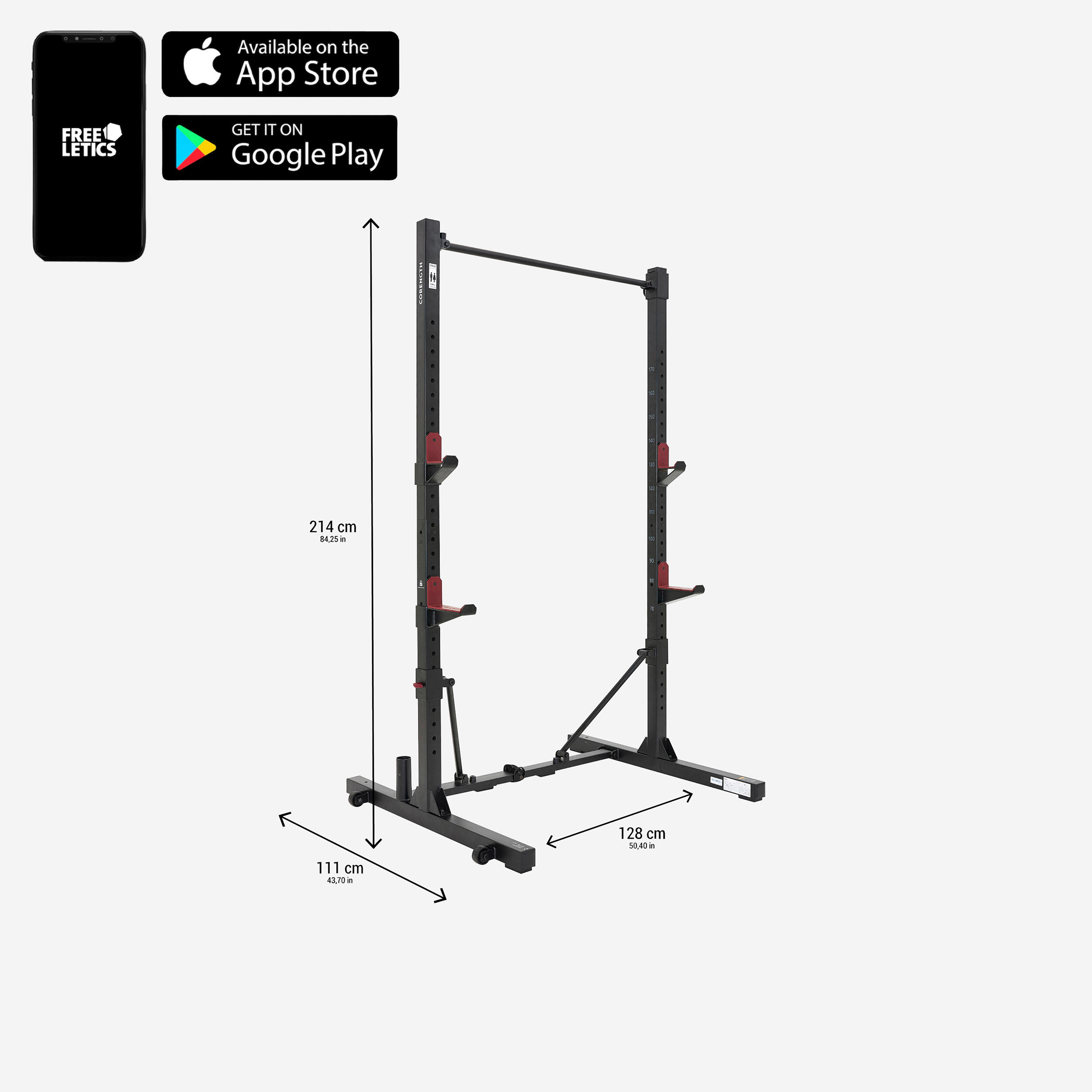

Weight training rack dimensions
Product in use:
- Depth: 111cm
- Length: 128 cm
- Height: 214 cm
- Weight: 42 kg
Box: - Depth: 120 cm
- Width: 80 cm
- Height: 20 cm
- Weight: 44.5 kg
Pull-up bar: 208 cm high
Max loads and safety tips
Rack:
- Max load: 200 kg.

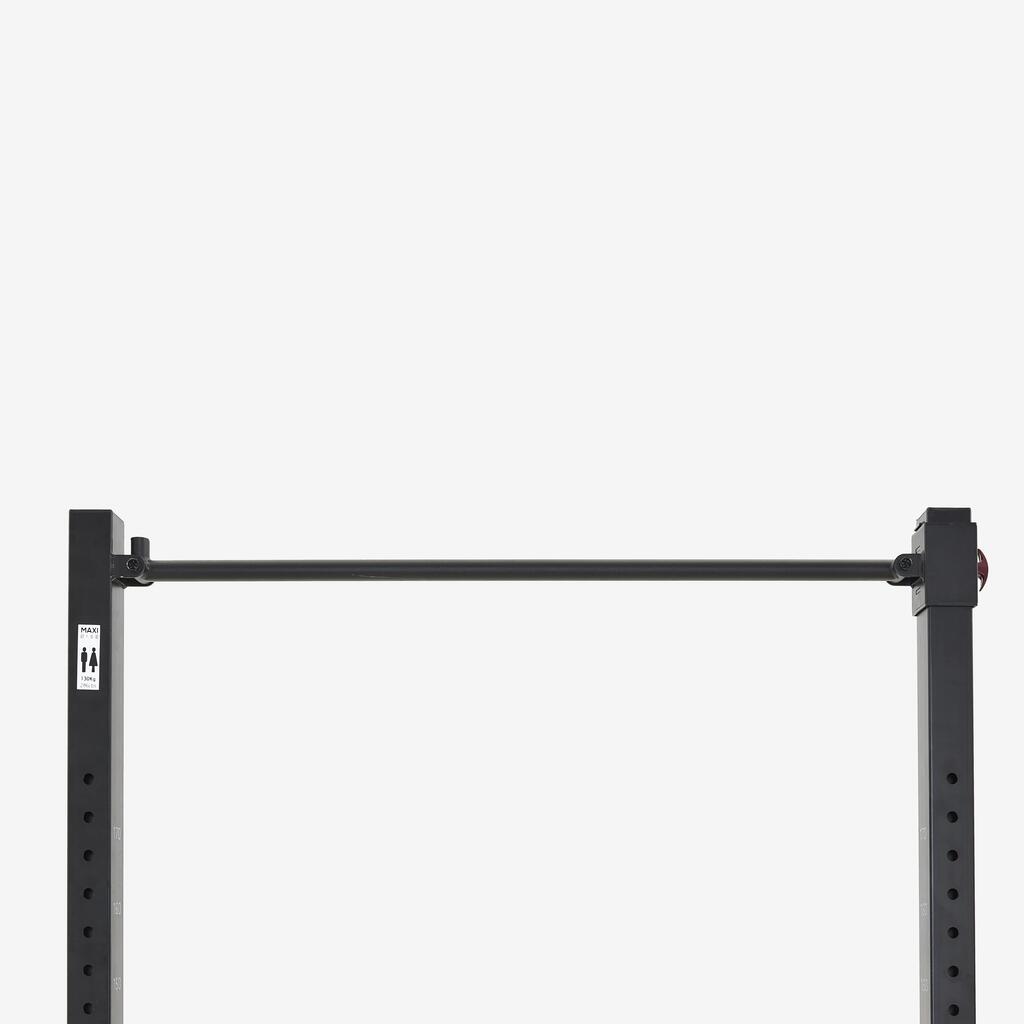

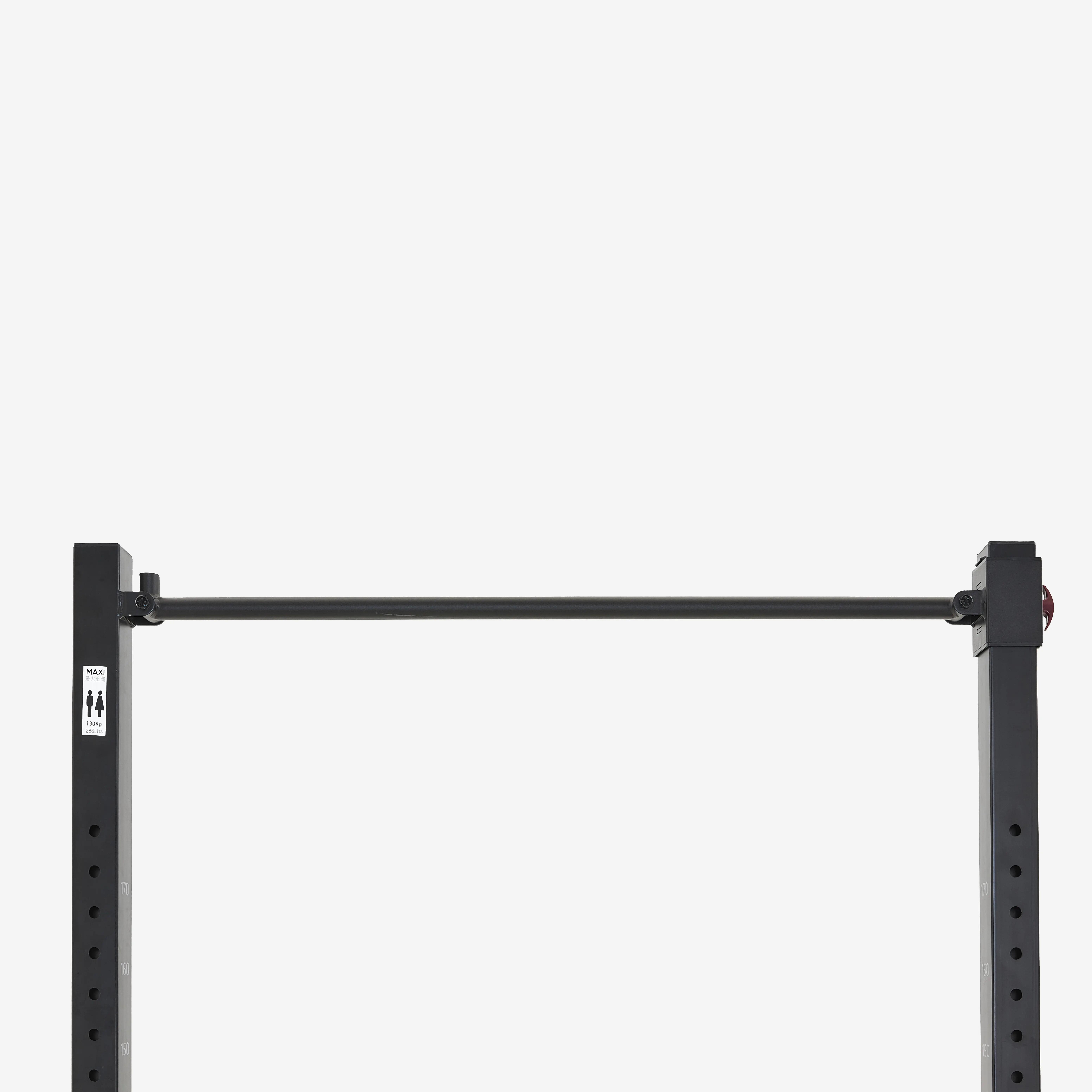

Pull-up bar:
- max load 130 kg (bodyweight + weights)

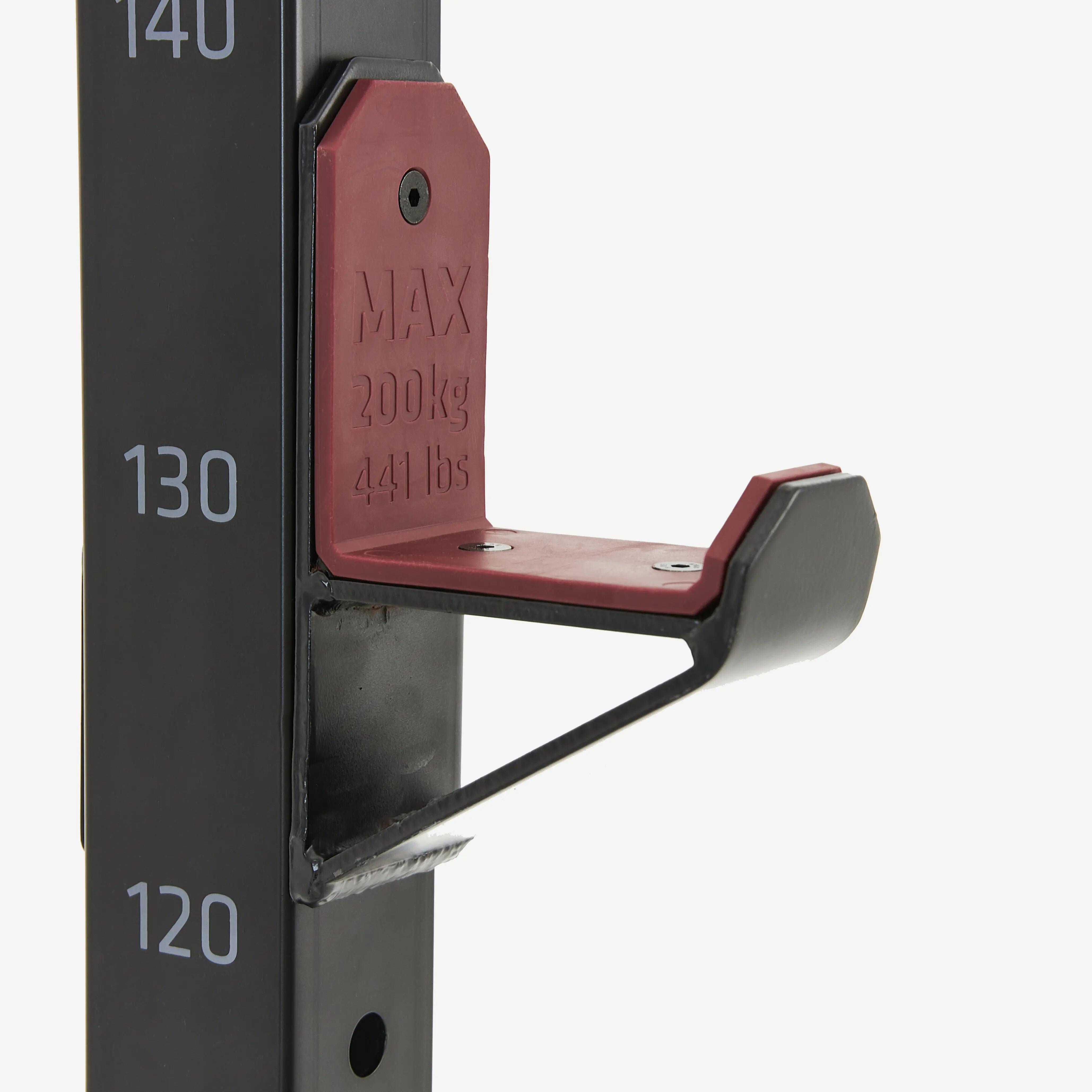

Bar rest:
- Maximum load 200 kg
For your safety, your rack has been tested with a load 2.5 times greater than its maximum claimed load!
For use with 1.75 m and 2 m weight training and weight lifting bars.
Always insert the metal safety pins and carry out a visual check before starting your session.
Work out safely
- Our rack complies with European safety standards, ensuring risk-free use. In the event of an imbalance, such as removing half the load from one side, the structure remains stable, preventing it from tipping over.
- For those worried about uneven surfaces, our rack is designed to maintain its stability even on a 10% sloping floor.
- Your bar rack can support up to 200 kg (100 kg per rack) and the pull-up bar 130 kg (body weight + ballast).
Assembly time and instructions
Assembly time:
- 45 minutes, 2 adults
To fold down your rack:
- Unscrew and unclip the safety dials (the white lines will no longer be facing each other)
- Remove the safety pin
- Place the bar rest on an immobile holder to not block the pull-up bar

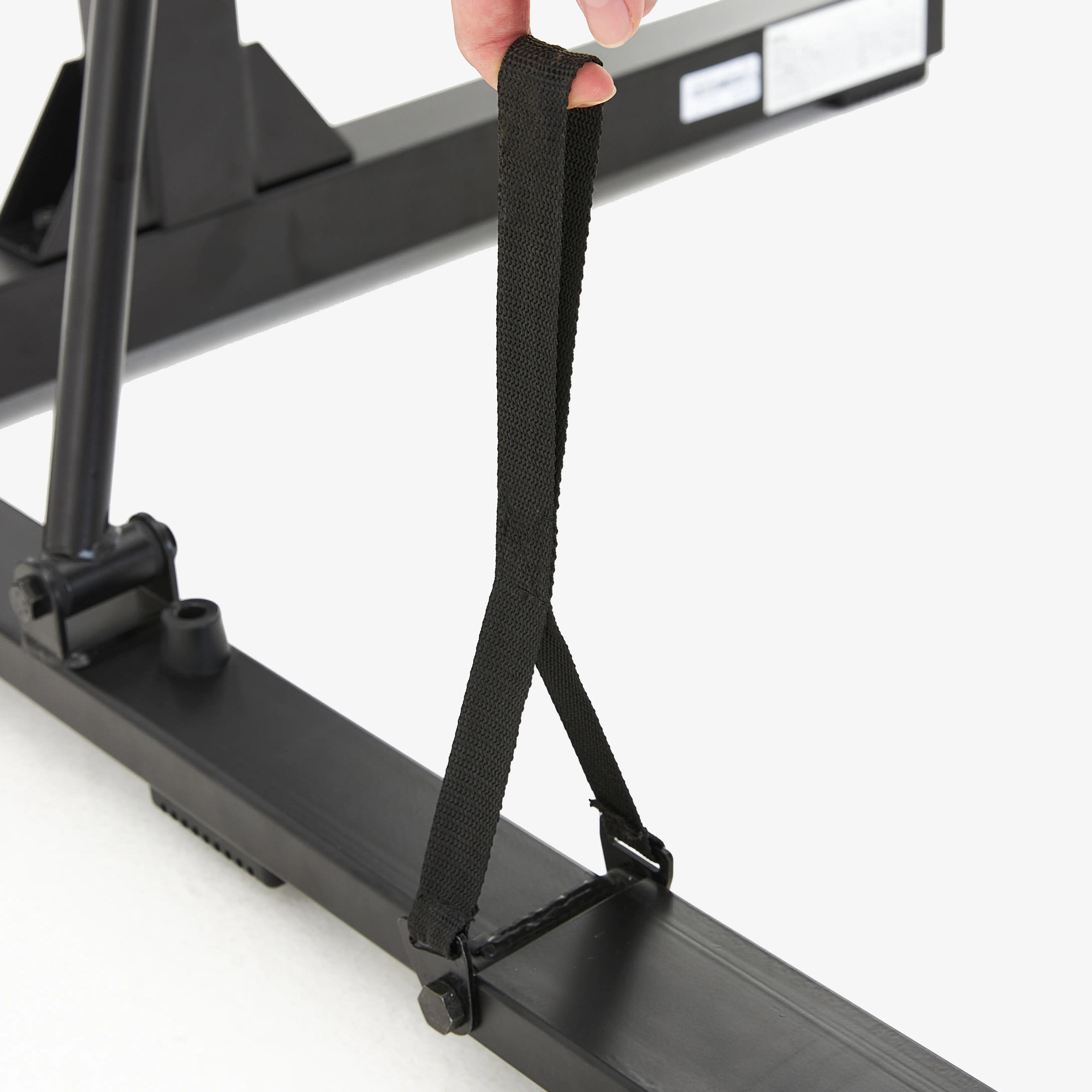

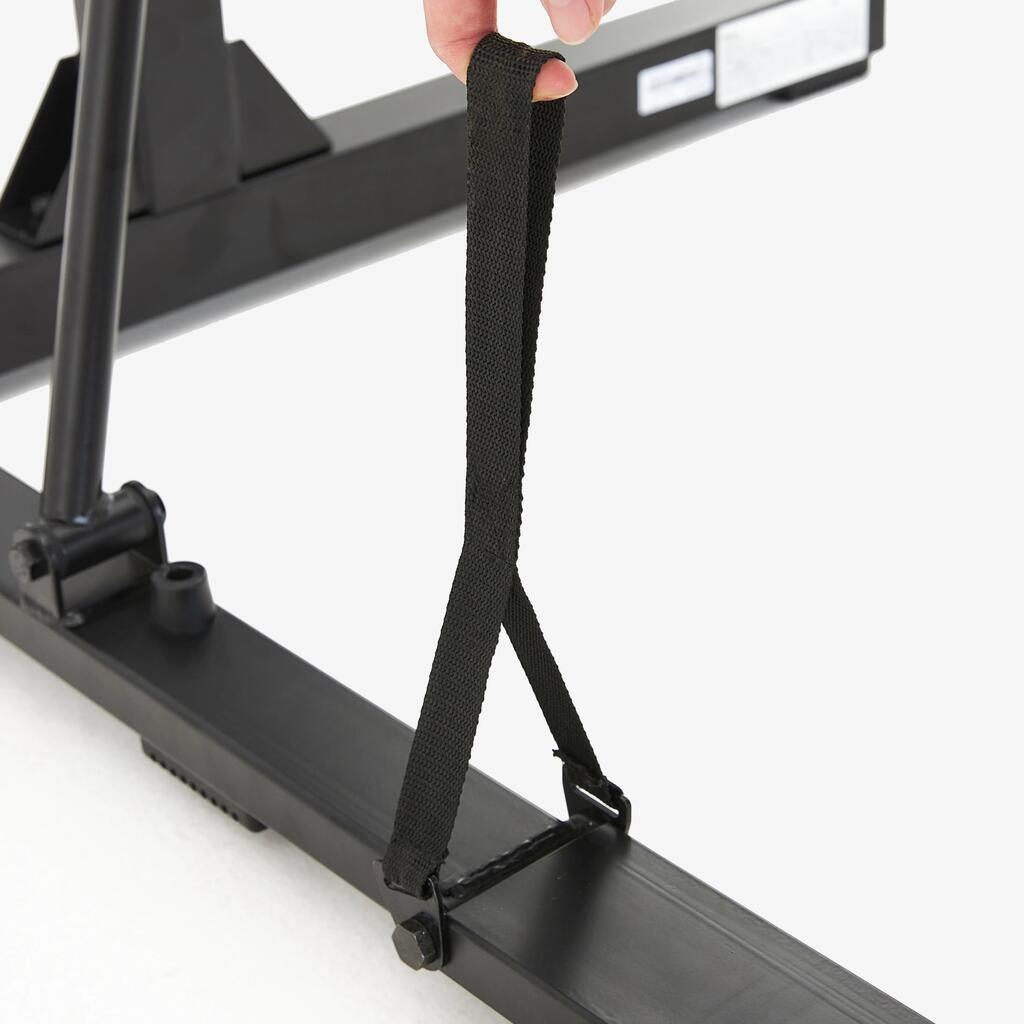

- Pull the handle on the lower bar
Never open/fold down the rack with weights or a weight bar in place.
Compatible accessories
You can add accessories to this rack for more exercise options:
- A dip kit (ref: 8612857)
- A landmine (ref.: 8766095, 50 mm or 28 mm, adapter included)
- 1 x 2 m bar, 28 mm diameter (ref.: 8289900)
- Weights (ref.: 1042303)
- Disc collars (ref.: 8574652)
If you have limited space, the Fold-Down Bench 500 (ref.: 8616804) will round out this rack without taking up too much space
You can also use mats to protect your floors (ref.: 8224362).
Spare parts for your weight training rack are available from our after-sales service
Your rack is repairable: get all the parts you need from our after-sales service!

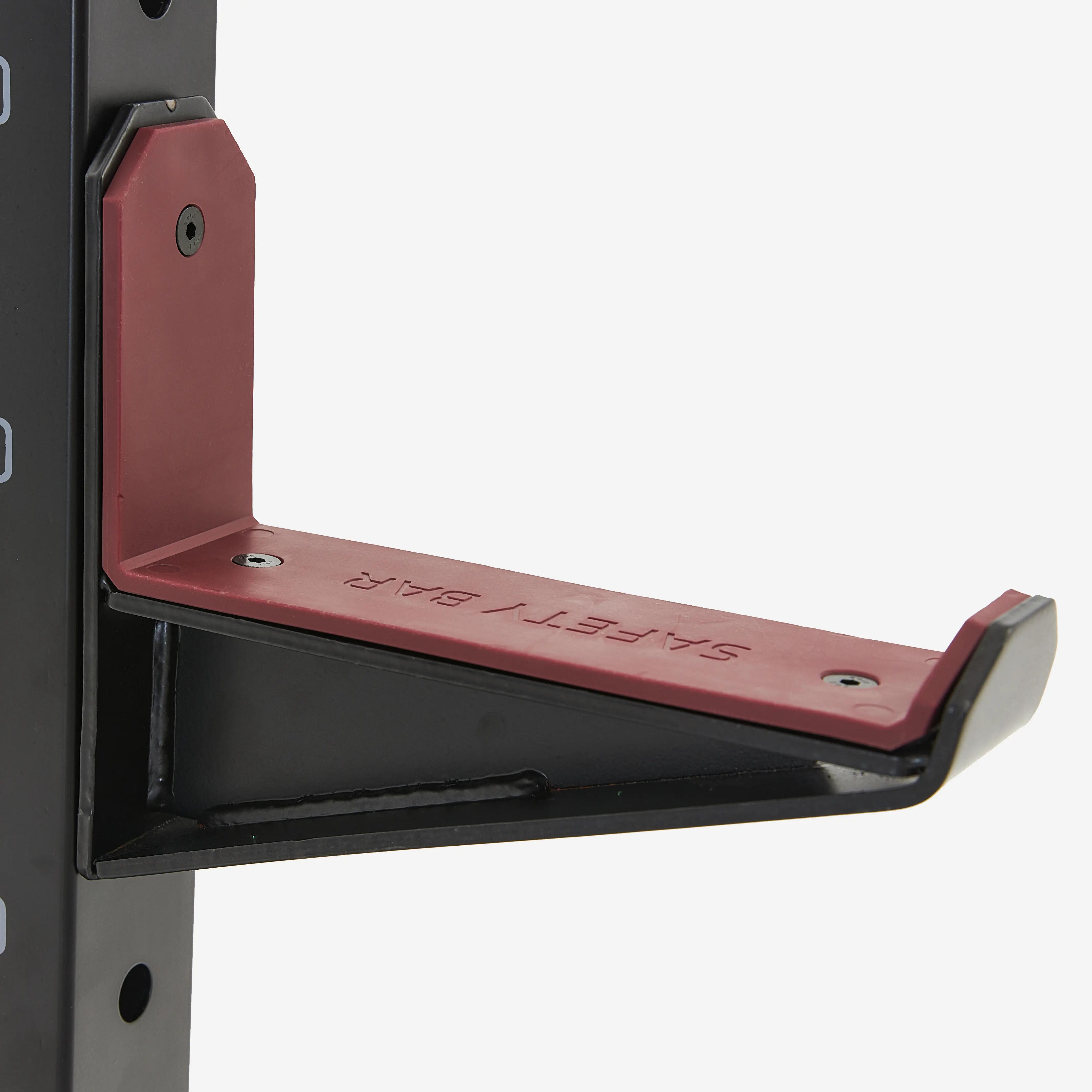

Bottom upright (ref.: 8821078), safety bar rest (ref.: 8771099), screws (ref.: 8817062).
All parts are available on our after-sales site.
Can you install this rack outdoors?
No, it is not designed for outdoor use. This metal rack has not been treated to protect it from moisture or sunlight. If you keep it outdoors or in a damp place, it may rust, which can weaken the structure and make it unsafe to use.
Why choose the Freeletics app?
Freeletics is your personal digital coach, using AI and sports science to create customised plans to suit your level and your goals. Whether you want to lose weight, build muscle, or get in shape, with or without equipment, Freeletics can adapt a programme. Create your own workouts from hundreds of exercises, track your progress, set challenges, and even more.
COMPOSITION
composition
Frame: 5.0% Polypropylene, 90.0% Steel, 5.0% Dry Nitrile Butadiene Rubber
NUTRITIONAL INFORMATION
nutritional information
Fold-down weight training rack, squat and bench Rack 500
Tips for storage and maintenance
Storage tips
For indoor use.
Restrictions on use
Maximum load: 200 kg<br /> No dynamic movements
TESTS AND WARRANTY
Test product
By our Domyos Club certified coaches
Warranty
2 Years
Agree by
EN 20957-1 and EN 20957-4 standards (home use only)
