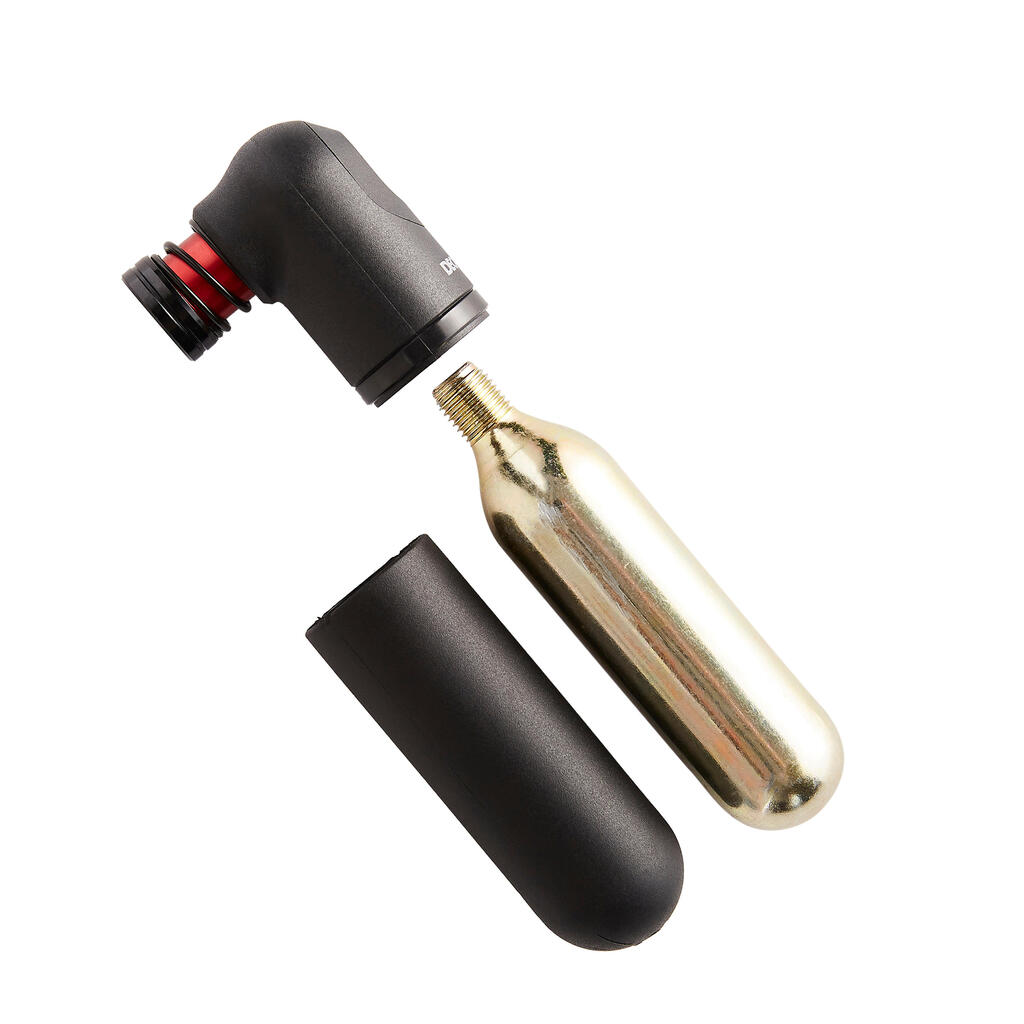

ROAD Bike CO2 Pump with 16g Cartridge
Store Availability
Store availability
BENEFITS
Compact design
Weight: 104 g Size: 110mm
Easy transport
Attach to the bike's frame using the universal B'Twin mount.
Ease of use
Clips on to the valve. Universal connector for all valves.
Power
Inflate up to 9 bars/130 PSI (road tyres).
Fast acting
Reinflate your tyre in just a few seconds.
Instructions
Download it hereTECHNICAL INFORMATIONS

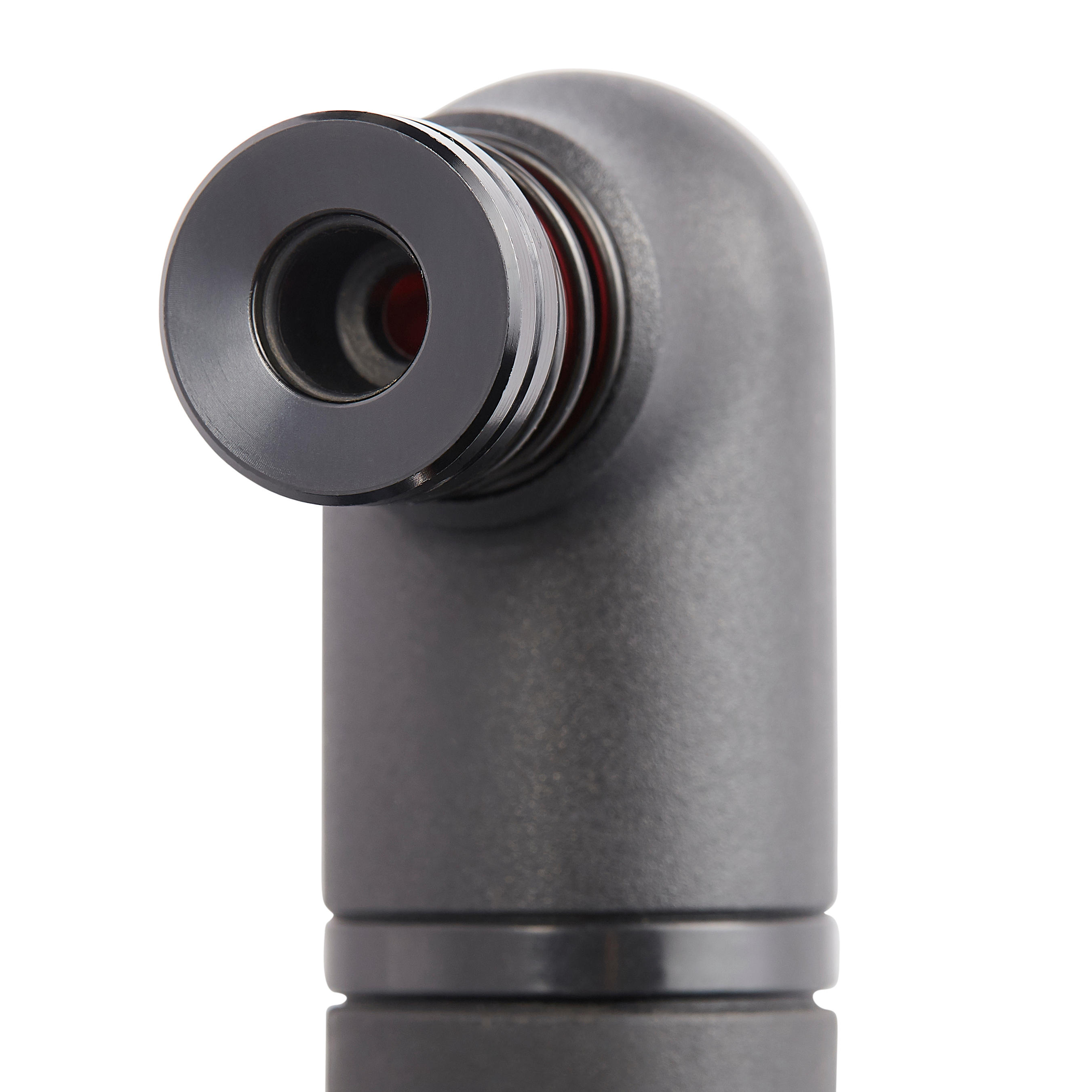

Small and large valves
Quick connection to all valve types (Presta, Schrader and Dunlop). Fitting is done using a universal connector for all valves.

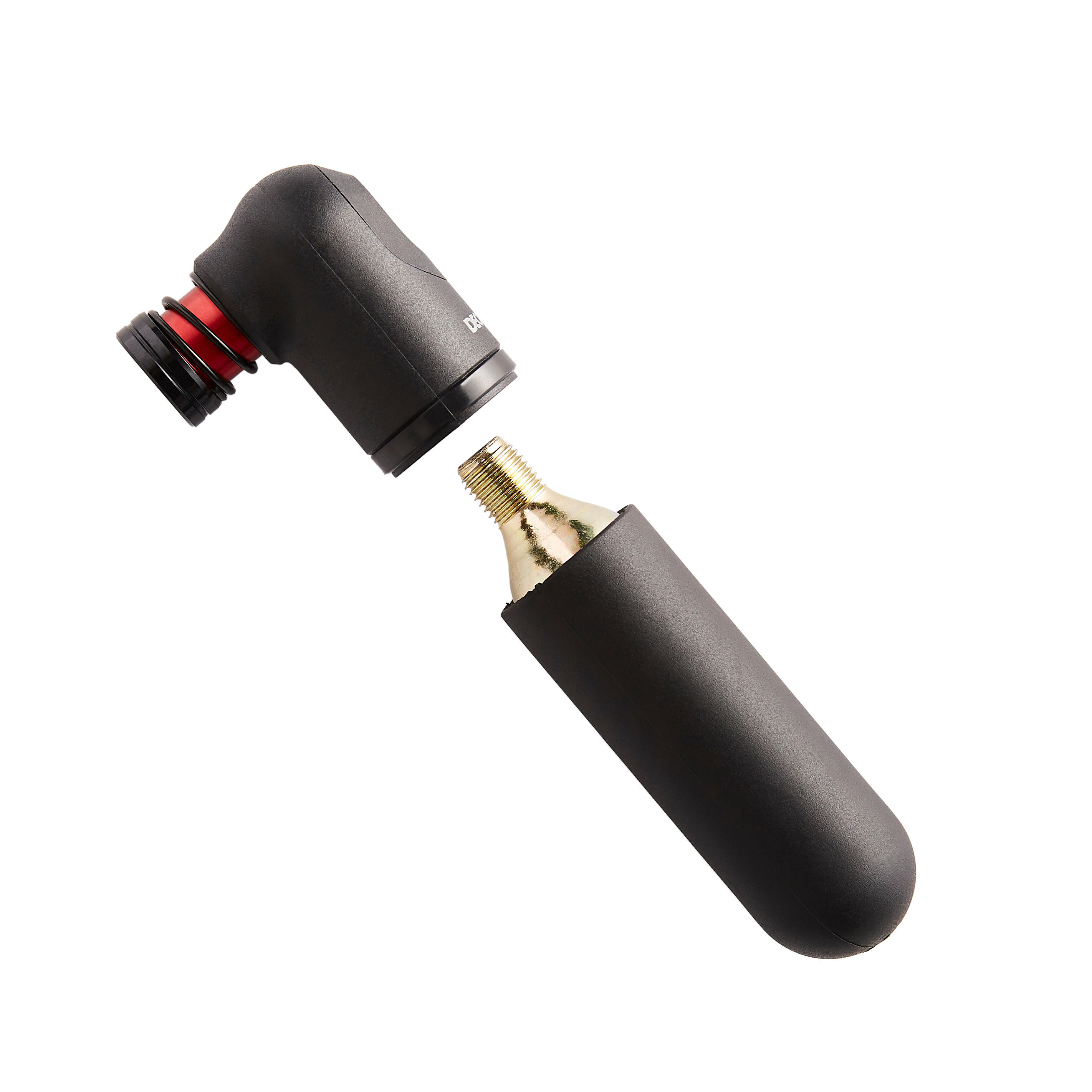

Cover protects from the cold
Your hand is protected from the cold thanks to the cover made from thermoplastic, rubber, and synthetic material.
Max pressure in record time

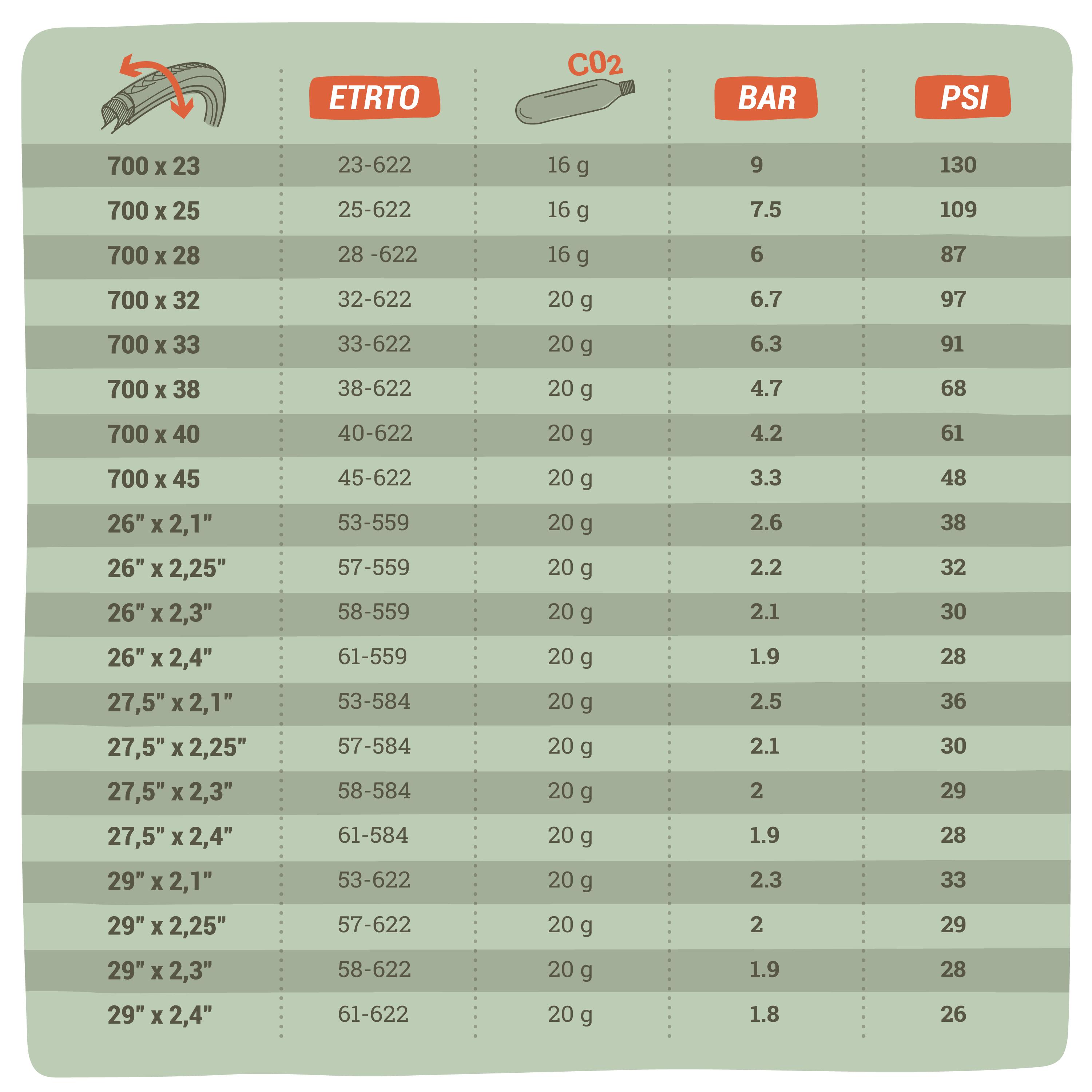

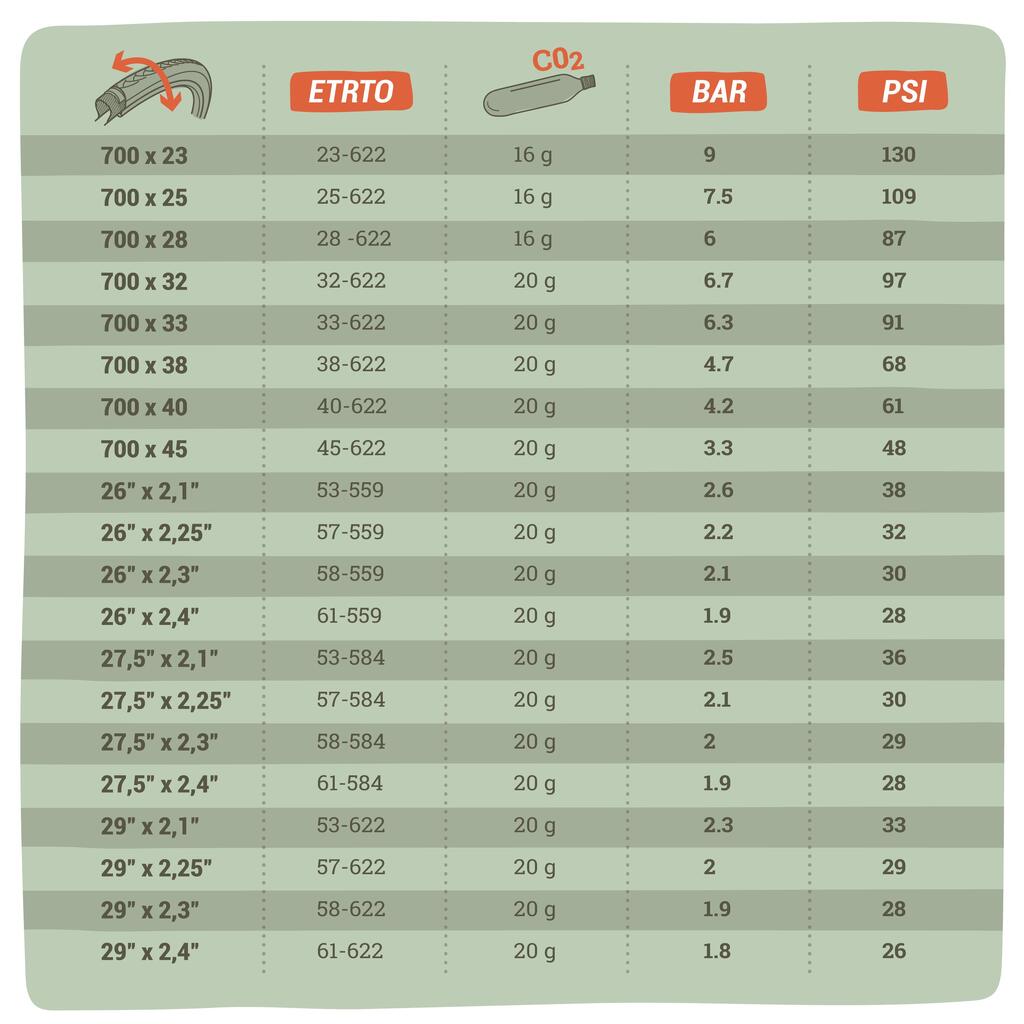

A 16 g CO2 cartridge can inflate tyres to the following pressures:
ROAD: 700x23C: 9 bar/130 PSI
700x25C: 7.5 bar/108 PSI
700x28C: 6 bar/87 PSI
MTB:
29" x 2.1": 2.1 bar/30 PSI
26" x 2.4": 1.8 bar / 26 PSI
26" x 1.95": 2.7 bar/ 39 PSI
24" x 2": 2.9 bar / 42 PSI
20" x 2": 3.3 bar / 48 PSI

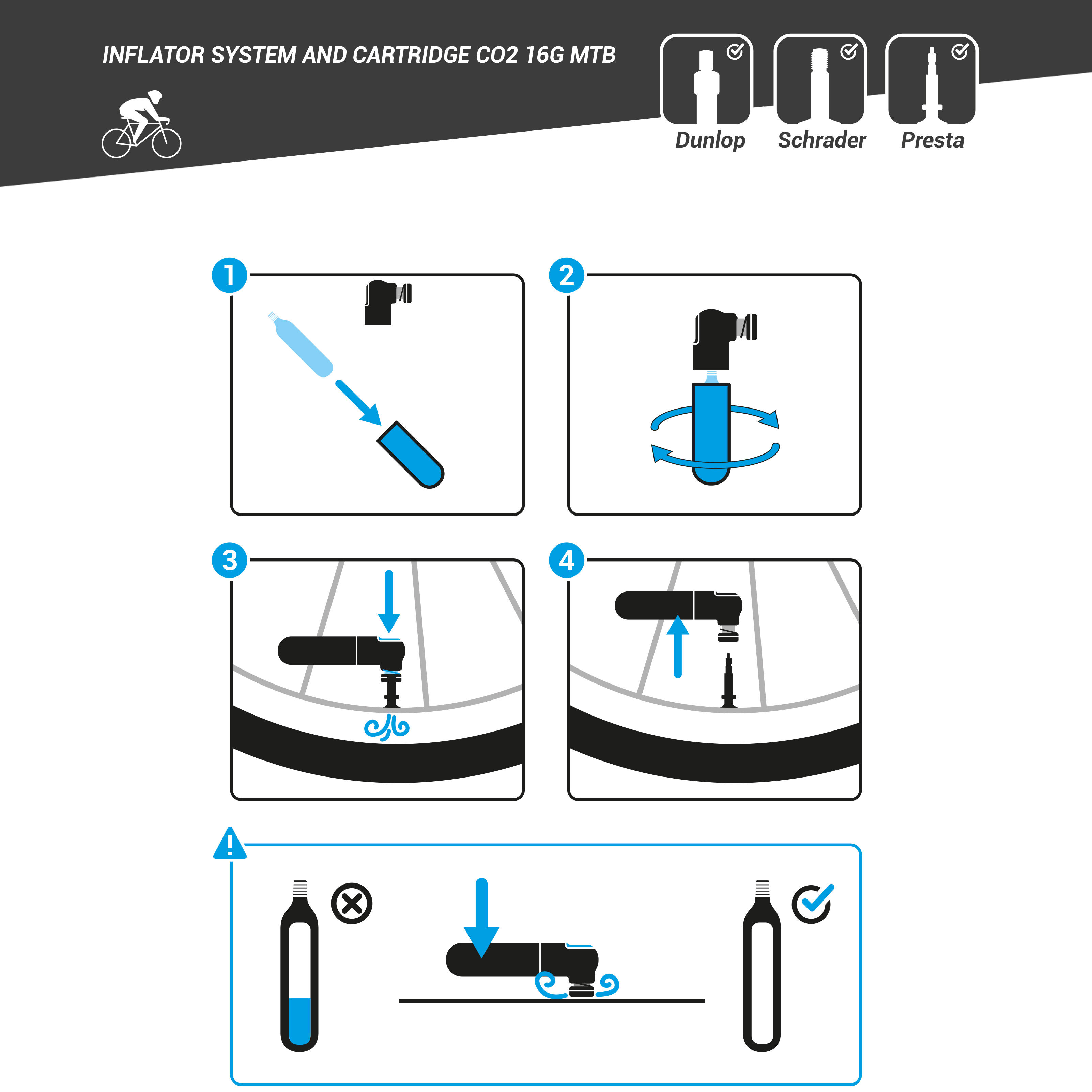

Directions for use
1) Completely screw in the cartridge to the pump's head. This way, the cartridge is primed but doesn't emit cold.
2) The pump is ready to be used.

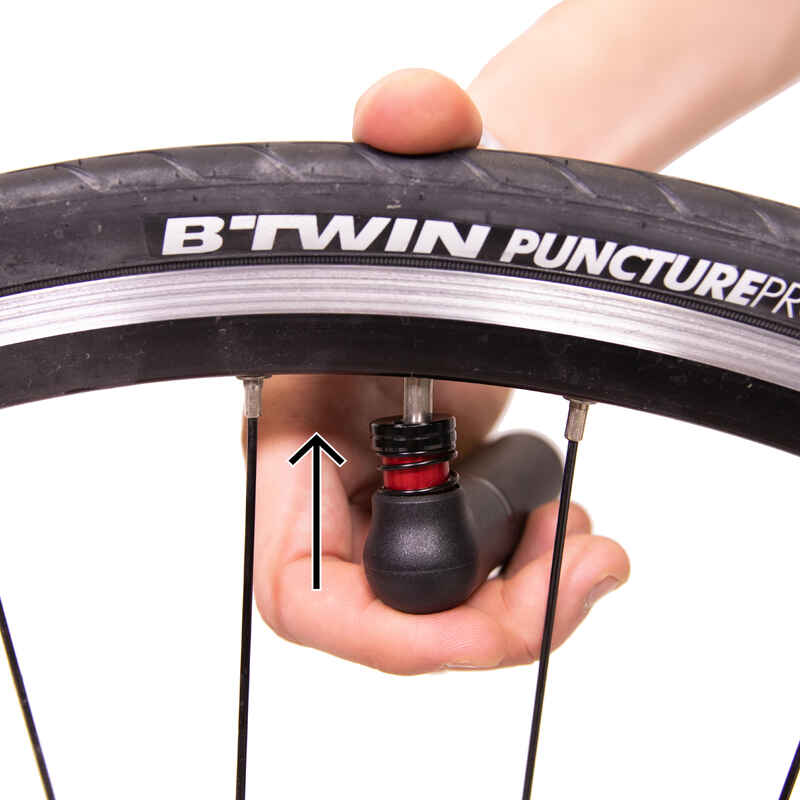

3) Connect the CO2 pump by screwing it in with the red knob.
4) Activate the release of gas by pressing the button in the middle of the knob. The tyre inflates instantly.
5) Remove the CO2 pump by unscrewing the red knob.
6) Release the rest of the cartridge's gas by pressing on the knob's centre button.
COMPOSITION
composition

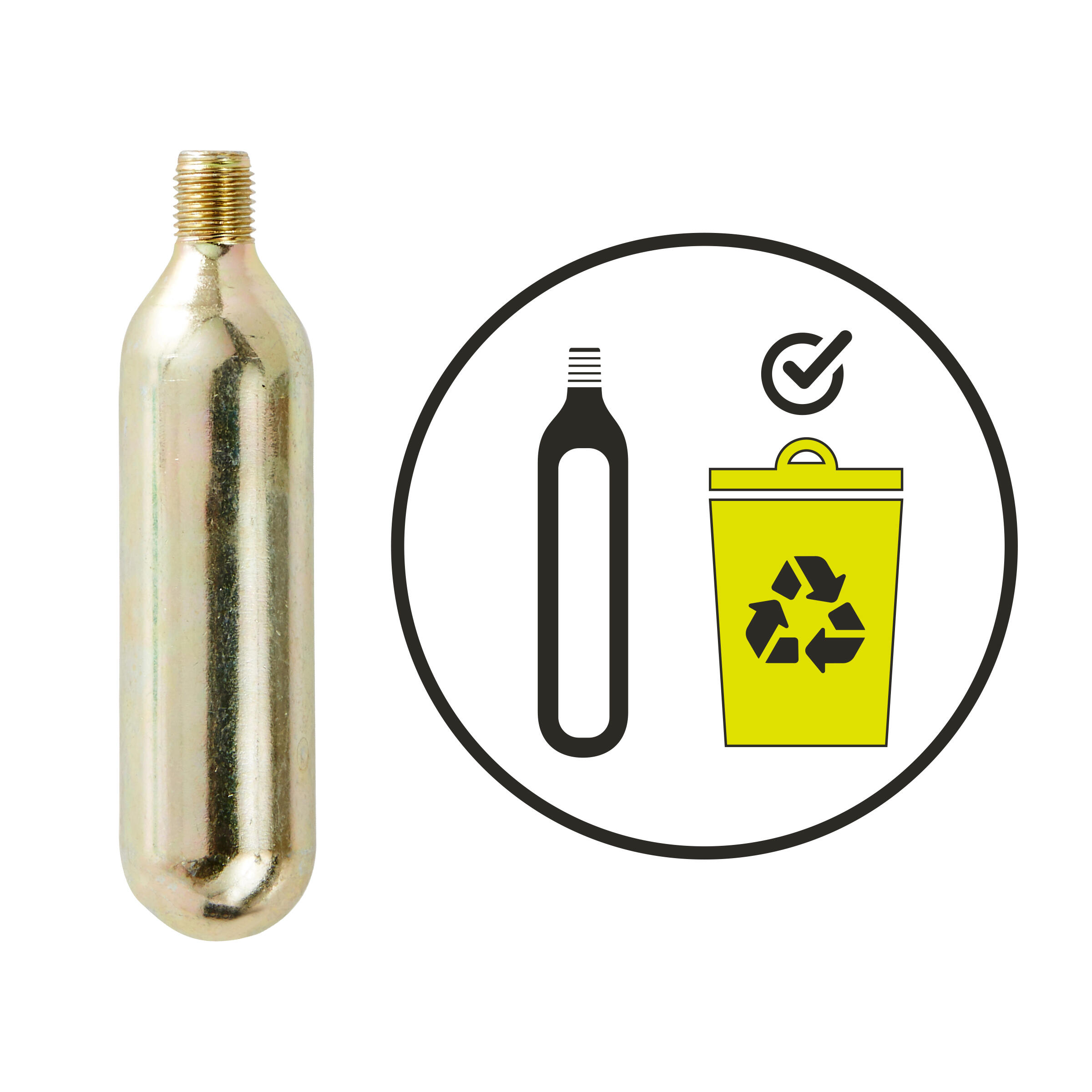

Bottle body: 100.0% Steel; Main part: 40.0% Nylon, 60.0% Aluminium; Formula: 100.0% Carbon Dioxide; Protection cover: 100.0% Thermoplastic Polyethylene
Tips for storage and maintenance
Storage tips
WARNING! Contains pressurised gas; may explode in high heat. Store in a well-ventilated place out of direct sunlight.
Restrictions on use
Only use with B'Twin compatible cartridges.
TESTS AND WARRANTY
Parts guarantee
2 year warranty
